2019 CFMOTO UFORCE 1000 Front Suspension OEM Parts Diagram

Submodel CF1000UU UFORCE 1000 2019 True Timber Camo

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

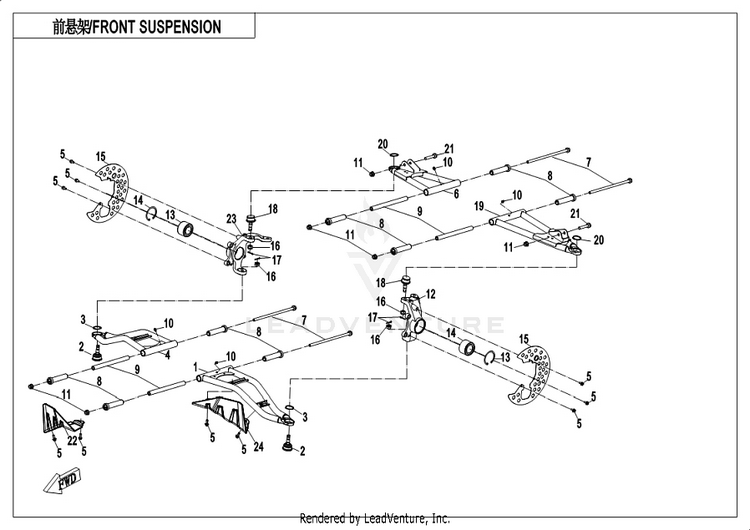

FRONT SUSPENSION

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HYV-050210-1C00FRONT LOWER A ARM, LH
Usually ships in 7-10 business days
29060-050900-10000BALL PIN COMP.
5 In-Stock
330801-03405RETAINER 34
10+ In-Stock
45SYV-050410-6001

(replaces part #
5HY0-050410)

FRONT RH LOWER SWING ARM
Usually ships in 7-10 business days
530006-060012870BOLT M6x12
10+ In-Stock
65HYV-050310-1C00FRONT UPPER A ARM, RH
Usually ships in 7-10 business days
74060-060101MOUNTING SHAFT, REAR ARM
Usually ships in 7-10 business days
89060-050002LONG BUSH,SUSPENSION ARM
2 In-Stock
99060-060101-00002MIDDLE SPACER, REAR UPPER SWING ARM
Usually ships in 7-10 business days
103121401

(replaces part #
3120100)

GREASE ZERK M6
10+ In-Stock
1130204-102810NUT M10x1.25
10+ In-Stock
125HY0-050701STEERING KNUCKLE, LH
Usually ships in 7-10 business days
1330800-06005CIRCLIP
8 In-Stock
1430411-03081HUB BEARING
8 In-Stock
157020-050005BRAKE DISC SHIELD
Usually ships in 7-10 business days
1630219-122810NUT M12×1.25
10+ In-Stock
1730903-0322210COTTER PIN
10+ In-Stock
189030-050600-10000BALL PIN COMP.
5 In-Stock
195HYV-050110-1C00FRONT UPPER A ARM, LH
Usually ships in 7-10 business days
2030801-03205RETAINER 32
4 In-Stock
2130006-102055810BOLT M10X1.25X55
Usually ships in 7-10 business days
225HY#-050401-1000FRONT RH SWING ARM GUARD
Usually ships in 7-10 business days
235HY0-050801STEERING KNUCKLE, RH
Usually ships in 7-10 business days
245HY#-050201-1000GUARD, FRONT LH SWING ARM
Usually ships in 7-10 business days
