2019 CFMOTO UFORCE 1000 Right Crankcase Assy. OEM Parts Diagram

Submodel CF1000UU UFORCE 1000 2019 True Timber Camo

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

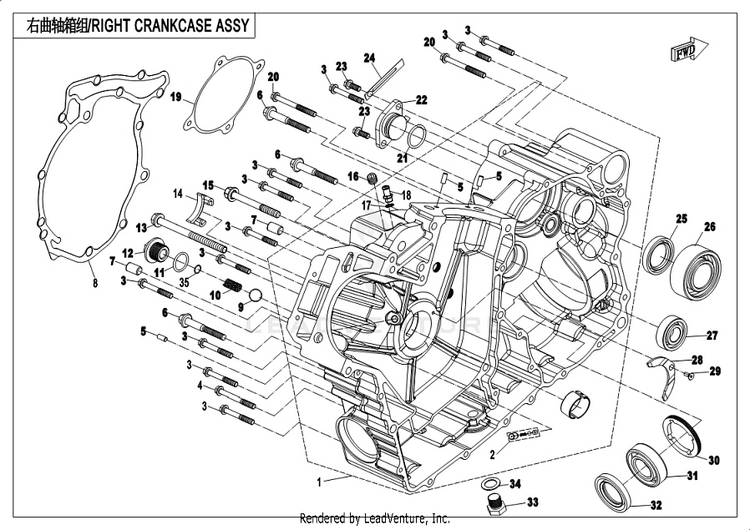

RIGHT CRANKCASE ASSY.

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10JWA-012100-20001RIGHT CRANKCASE ASSY.
Usually ships in 7-10 business days
20800-011400-00001

(replaces part #
0800-011400)

NOZZLE VALVE ASSY
Usually ships in 7-10 business days
30180-013208-0010BOLT M6×45
Usually ships in 7-10 business days
40010-021018-0010BOLT M6X55
Usually ships in 7-10 business days
530406-00500ROLLER PIN P 5×11.8
Usually ships in 7-10 business days
60130-011109-0010BOLT, M8X10
Usually ships in 7-10 business days
70010-021005DOWEL PIN f 10×14
10+ In-Stock
80JWA-012001GASKET, CVT CASE
2 In-Stock
93120015STEEL BALL
Usually ships in 7-10 business days
100700-012603-1000SPRING,RELIEF VALVE
Usually ships in 7-10 business days
110180-332004O-RING 19×2.5
Usually ships in 7-10 business days
120GR0-014003SCREW PLUG,DECOMPRESSOR
Usually ships in 7-10 business days
130130-011115-0010BOLT, M8X106
Usually ships in 7-10 business days
140800-011007UPPER GUIDE, TIMING CHAIN
Usually ships in 7-10 business days
150700-012003-00002

(replaces part #
0700-012003)

BOLT M8x73
Usually ships in 7-10 business days
1601A0-012010-00001SCREW
Usually ships in 7-10 business days
170010-011008O-RING, 15.8X2.4
Usually ships in 7-10 business days
180JWA-080009-00001

(replaces part #
0JWA-080009)

JOINT, WATER PUMP COVER
Usually ships in 7-10 business days
190JWA-012002GASKET, CVT CASE SMALL
2 In-Stock
200A70-011005-00001BOLT M6x76
Usually ships in 7-10 business days
210180-023002O-RING 24×2.5
5 In-Stock
220800-012200-1000SENSOR,GEARSHIFT, GREY CONNECTOR
Usually ships in 7-10 business days
230010-090005-0010BOLT M6×16
Usually ships in 7-10 business days
240180-014010WIRE CLAMP
Not Shipping
250180-012006-10000

(replaces part #
0180-012006-00001)

OIL SEAL
4 In-Stock
2630499-03000BEARING 3206A
Usually ships in 7-10 business days
2730400-01704BEARING 6203
Usually ships in 7-10 business days
280800-011003THRUST WASHER
Usually ships in 7-10 business days
2930122-040010850SCREW
Usually ships in 7-10 business days
300JWA-012004BEARING RETAINER
Usually ships in 7-10 business days
3130400-02501BALL BEARING 6025
Usually ships in 7-10 business days
3130400-02501?BALL BEARING 6025
Usually ships in 7-10 business days
320010-011002OIL SEAL, 25X40X8
2 In-Stock
330JWA-012200-00001

(replaces part #
0JWA-012200)

MAGNETIC DRAIN BOLT
10+ In-Stock
340JWA-012003GASKET, OIL DRAIN PLUG 14.1x22x1
10+ In-Stock
3530304-050440WASHER
Usually ships in 7-10 business days
