2019 CFMOTO UFORCE 1000 Rear Suspension OEM Parts Diagram

Submodel CF1000UU UFORCE 1000 2019 ATHENS BLUE

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

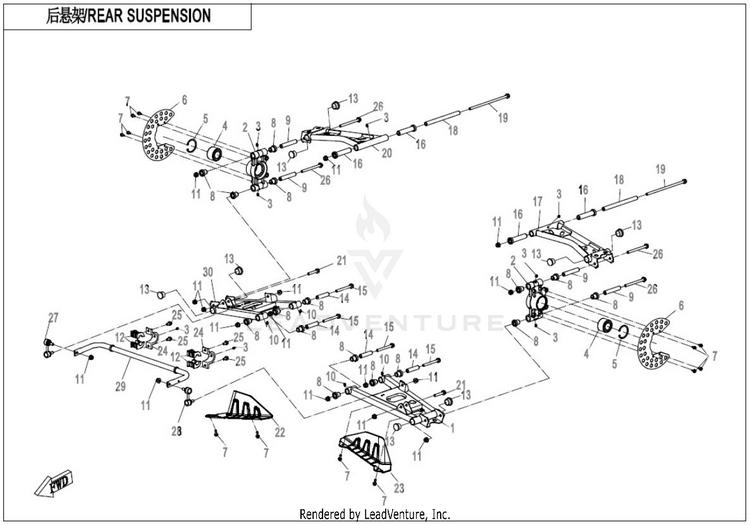

REAR SUSPENSION

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HY0-060210REAR LOWER A ARM, LH
Usually ships in 7-10 business days
25HY0-060703BRACKET, REAR WHEEL SHAFT
Usually ships in 7-10 business days
33121401

(replaces part #
3120100)

GREASE ZERK M6
10+ In-Stock
430411-03081HUB BEARING
8 In-Stock
530800-06005CIRCLIP
8 In-Stock
65HY0-060702GUARD, REAR BRAKE DISC
Usually ships in 7-10 business days
730006-060012870BOLT M6x12
10+ In-Stock
89060-050003SHORT BUSH,SUSPENSION ARM
10+ In-Stock
95HY0-060701-00001MIDDLE SPACER, REAR BEARING CARRIER
8 In-Stock
103121400GREASE ZERK | 90°
Usually ships in 7-10 business days
1130204-102810NUT M10x1.25
10+ In-Stock
127000-060003SWAY BAR BUSHING
Usually ships in 7-10 business days
139060-060002PLUG, REAR LOWER ARM
Usually ships in 7-10 business days
149060-060201-00002MIDDLE SPACER, REAR LOWER SWING ARM
Usually ships in 7-10 business days
1530001-102095110BOLT M10X1.25X95
4 In-Stock
169060-050002LONG BUSH,SUSPENSION ARM
2 In-Stock
175HY0-060110-00001REAR UPPER A ARM, LH
Usually ships in 7-10 business days
189060-060101-00002MIDDLE SPACER, REAR UPPER SWING ARM
Usually ships in 7-10 business days
194060-060101MOUNTING SHAFT, REAR ARM
Usually ships in 7-10 business days
205HY0-060310REAR UPPER A ARM, RH
Usually ships in 7-10 business days
2130006-102055810BOLT M10X1.25X55
Usually ships in 7-10 business days
225HYV-060401-1000GUARD, REAR RH SWINGARM
Usually ships in 7-10 business days
235HYV-060201-1000GUARD, REAR LH SWINGARM
Usually ships in 7-10 business days
249030-060002RETAINING COVER
Usually ships in 7-10 business days
2530006-080016810BOLT M8X16
10+ In-Stock
2630006-102120810BOLT M10X1.25X120
2 In-Stock
279DQV-060800-3000-M2

(replaces part #
9010-060800-20000)

SWAY BAR LINK (RH)
Usually ships in 7-10 business days
289010-060700-20000SWAY BAR LINK (LH)
Usually ships in 7-10 business days
295HY0-060610REAR SWAY BAR
Usually ships in 7-10 business days
305HY0-060410REAR LOWER A ARM. RH
Usually ships in 7-10 business days
