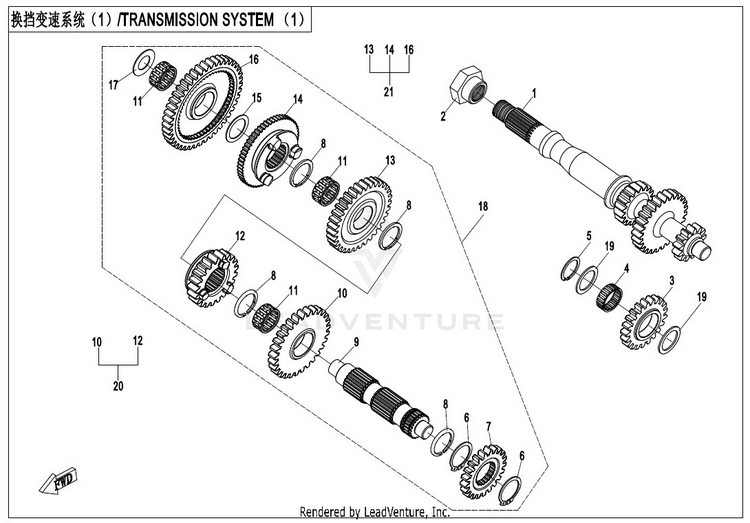

2019 CFMOTO UFORCE 1000 Transmission System(1) OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	0800-060004-10001 (replaces part # 0800-060004)	MAIN SHAFT, GEARSHIFT	Usually ships in 7-10 business days
2	0JY0-060001-00002	NUT, MAIN DRIVE SHAFT	Usually ships in 7-10 business days
3	0800-060003	INTERMEDIATE GEAR, REVERSE	Usually ships in 7-10 business days
4	30402-02500	NEEDLE BEARING	1 In-Stock
5	0180-061007-0050	RETAINER 25	Usually ships in 7-10 business days
6	30801-02905	RETAINING RING 29	Usually ships in 7-10 business days
7	0800-061009	GEAR, PARKING	Usually ships in 7-10 business days
8	0800-061007	RETAIN RING 29	Usually ships in 7-10 business days
9	0800-061001	COUNTERSHAFT	Usually ships in 7-10 business days
11	30402-02402	NEEDLE BEARING	Usually ships in 7-10 business days
15	0800-061003	WASHER 24.5Ã—33.5Ã—1	Usually ships in 7-10 business days
17	0800-061002	WASHER 17.5Ã—32Ã—1	Usually ships in 7-10 business days
18	0JWA-061000-30000	DRIVEN SHAFT ASSY.	Usually ships in 7-10 business days
19	0GR0-061009-00001	WASHER 25X34X1.5	Usually ships in 7-10 business days
20	0JWA-0610A0-30000	DRIVEN GEAR ASSY.	Usually ships in 7-10 business days
21	0JWA-0610B0-30000	GEARSHIFT GEAR ASSY. \| Includes 13, 14, 16	Usually ships in 7-10 business days
