2016 Husqvarna 701 ENDURO Exhaust System OEM Parts Diagram

Submodel 701 ENDURO CHASSIS - 2016

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Exhaust System

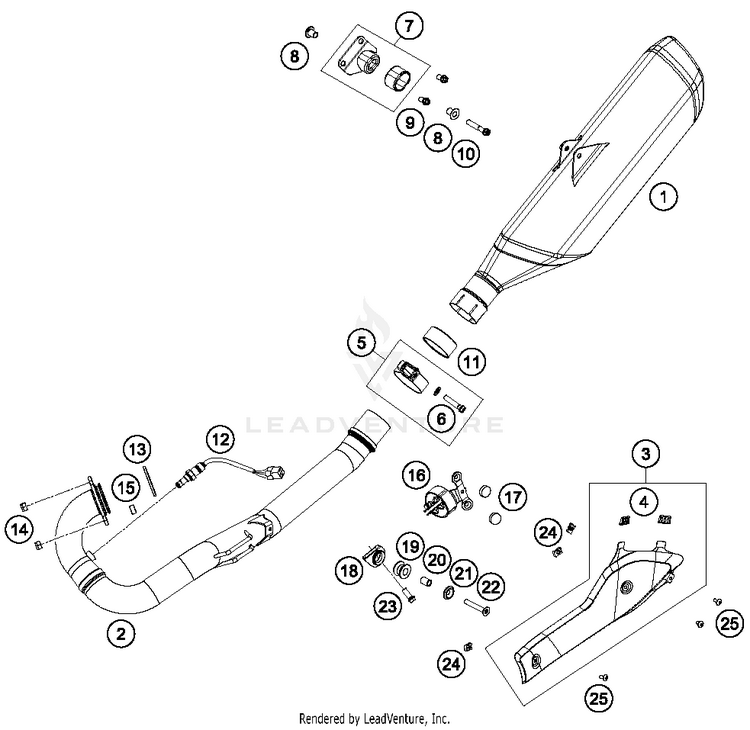

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
127005082000SILENCER$1,590.53$1,351.95Usually ships in 7-10 business days
227005007000EXHAUST PIPE CPL.$825.43$701.62Usually ships in 7-10 business days
327005011000THERMAL SHIELD$162.02$137.72Usually ships in 7-10 business days
427005011011DAMPING ELEMENT SILICON$10.00$8.5010+ In-Stock
576505051000CLAMP FOR SILENCER 57,4MM 08 | 08$32.55$27.67Usually ships in 7-10 business days
60025080356HH collar screw M8x35 TX40 | TX40$4.83$4.1110+ In-Stock
776505084100HOLDER SILENCER CPL.$68.19$57.96Usually ships in 7-10 business days
860305069100

(replaces part #
60305069000)

Bushing$2.99$2.5410+ In-Stock
90025060166HH collar screw M6x16 TX30 | TX30$2.99$2.5410+ In-Stock
100025080456HH collar screw M8x45 TX40 | TX40$4.99$4.2410+ In-Stock
1158605005000GRAPHIT RING 55X50X25 05 | 05$19.90$16.928 In-Stock
1275041090100LAMBDA SENSOR$201.40$171.19Usually ships in 7-10 business days
1361005005000EXHAUST GASKET 05 | 05$11.76$10.0010+ In-Stock
1451010086100self-locking nut M8 Cu$3.99$3.3910+ In-Stock
1561005009000SPACER BUSH. 8,5X15X7,5 05 | 05$6.15$5.238 In-Stock
1627005007025CLAMP WELD ASSEMBLY$44.76$38.05Usually ships in 7-10 business days
1754308042000RUBBER BUFFER$3.99$3.3910+ In-Stock
1827005007027EXHAUST SUPPORT$57.96$49.27Usually ships in 7-10 business days
1954305068100damp. component silicone grey$9.78$8.3110+ In-Stock
2056505069000SPACER BUSHING 8,4X12X16$4.99$4.49Usually ships in 7-10 business days
2162603061000SPECIAL WASHER 8X24 ALU H=4,2$6.81$5.7910+ In-Stock
220019080506COUN.-SUNK SCREW M8X50 ISA10.9$2.99$2.5410+ In-Stock
230025080206HH collar screw M8x20 | TX40$2.99$2.5410+ In-Stock
2454603048600RANGE CHANGE METAL NUT M5 INOX$2.99$2.5410+ In-Stock
2578105081010SCREW TORX M5X10$2.99$2.5410+ In-Stock
