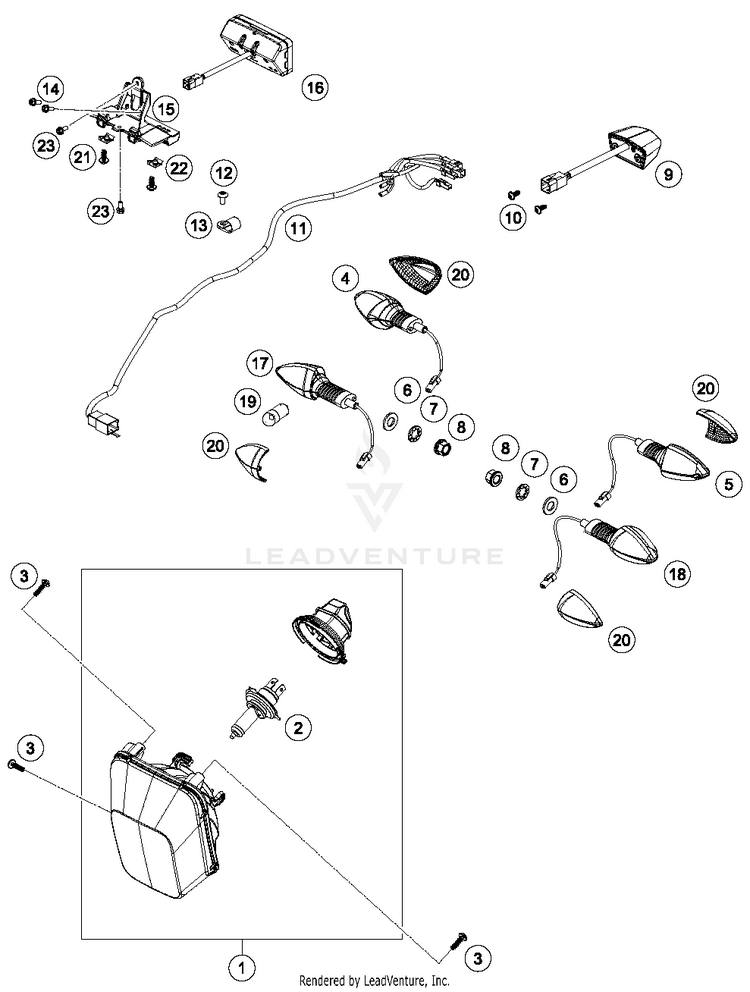

2016 Husqvarna 701 ENDURO Lighting System OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	27014001100 (replaces part # 27014001000)	Main Head Light	$149.37	$126.96	1 In-Stock
2	57111038000	BULB H4 12V 60/55W (P43T)	$51.25	$43.56	4 In-Stock
3	0081050181	SCREW FOR PLASTIC K50X18 T20	$2.99	$2.54	10+ In-Stock
4	60114026000	FLASHER CPL.FRONT R/S REAR L/S	$35.30	$30.00	10+ In-Stock
5	60114025000	FLASHER CPL.FRONT L/S REAR R/S	$35.30	$30.00	10+ In-Stock
6	0433100003	WASHER 18x10,5x1,6	$1.99	$1.69	10+ In-Stock
7	0797100003	LOCK WASHER DIN6797-J10,5 ZI	$1.99	$1.69	10+ In-Stock
8	58414030000	HH COLLAR NUT M10X1,25 WS=13	$2.99	$2.54	10+ In-Stock
9	60314047000	license plate lighting	$41.90	$35.62	10+ In-Stock
10	0081050121	EJOT PT screw K50x12	$2.99	$2.54	10+ In-Stock
11	27011076000	WIRING HARNESS REAR	$76.66	$65.16	Usually ships in 7-10 business days
12	78105081010	SCREW TORX M5X10	$2.99	$2.54	10+ In-Stock
13	57013070000	PVC-CLAMP 7/16'' HEYCO 3377	$1.99	$1.69	10+ In-Stock
14	0017060255	EJOT PT SCREW K60X25-Z SW6	$3.99	$3.39	10+ In-Stock
15	27014146000	CARRIER BACKLIGHT USA	$38.60	$32.81	Usually ships in 7-10 business days
16	27014140000	REAR LAMP SAE	$154.98	$131.73	Usually ships in 7-10 business days
17	26514026000	FLASHER CPL.FRONT R/S REAR L/S	$45.97	$39.07	5 In-Stock
18	26514025000	FLASHER CPL.FRONT L/S REAR R/S	$45.97	$39.07	5 In-Stock
19	60114027000	BULB 12V ORANGE (RY10W)	$7.80	$6.63	10+ In-Stock
20	60114028000	FLASHER LENS L/S R/S TRANSP.06 \| 06	$6.48	$5.51	10+ In-Stock
21	69008021160	special screw M5x12	$4.99	$4.24	10+ In-Stock
22	69008021080	clip nut M5	$3.99	$3.39	10+ In-Stock
23	0025050126	HH collar screw M5x12 TX30 \| TX30	$3.99	$3.39	10+ In-Stock
