2022 Husqvarna FX 450 Cooling System OEM Parts Diagram

Submodel FC/FX 450 Engine - 2022

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

COOLING SYSTEM

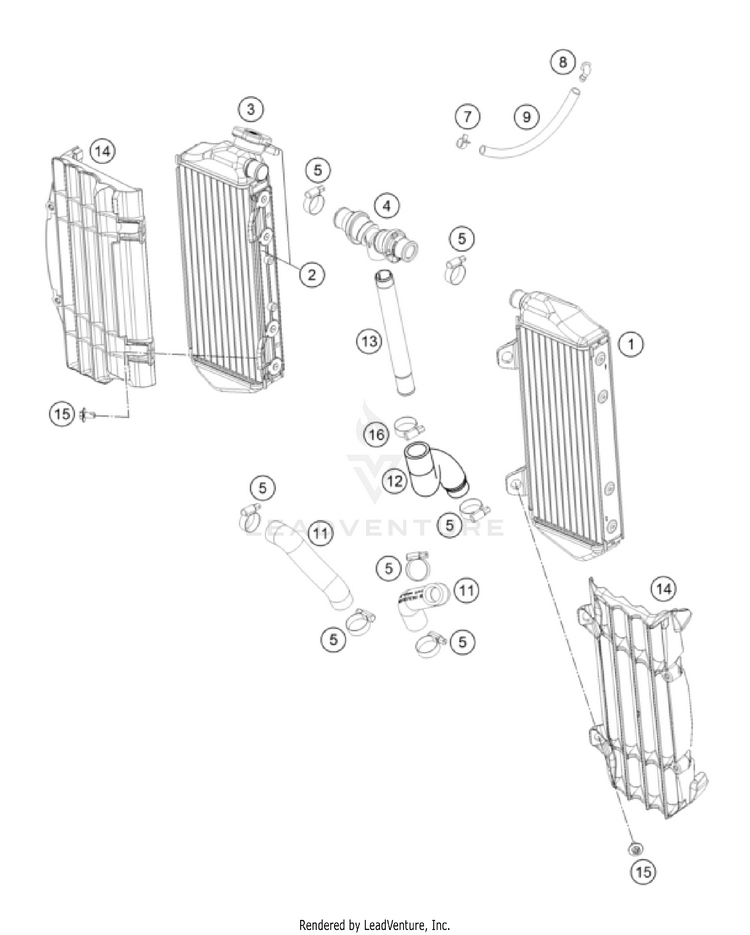

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150535007100Radiator, left 19$241.33$205.1310+ In-Stock
279535008100Radiator right$272.02$231.2210+ In-Stock
379035016000RADIATOR CAP 1,8 BAR$33.54$28.5110+ In-Stock
479135071044Y-hose cpl.$47.62$40.4810+ In-Stock
50310000902900

(replaces part #
10001020300)

Hose clip 18-29$2.99$2.5410+ In-Stock
759007017000CLAMP YDNAC 10096F (9,6MM)$2.99$2.5410+ In-Stock
850303089000ANGLE PIECE '97$6.15$5.2310+ In-Stock
950335030001PVC-HOSE 6X9 | ON DEMAND$7.91$6.7210+ In-Stock
1179535027000water hose right$8.35$7.1010+ In-Stock
1279535024000water hose$10.33$8.7810+ In-Stock
1379135073000threaded bushing$15.61$13.2710+ In-Stock
147913503400030radiator protector le/ri black$21.00$17.8510+ In-Stock
150900000601203

(replaces part #
0024060123)

HH ISR collar screw M6x12-10.9 ISA30$1.99$1.6910+ In-Stock
160310000903200

(replaces part #
79135031000)

Hose clip 20-32$2.99$2.5410+ In-Stock
