2023 Husqvarna FX 350 Cooling System OEM Parts Diagram

Submodel FX 350 ENGINE - 2023

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

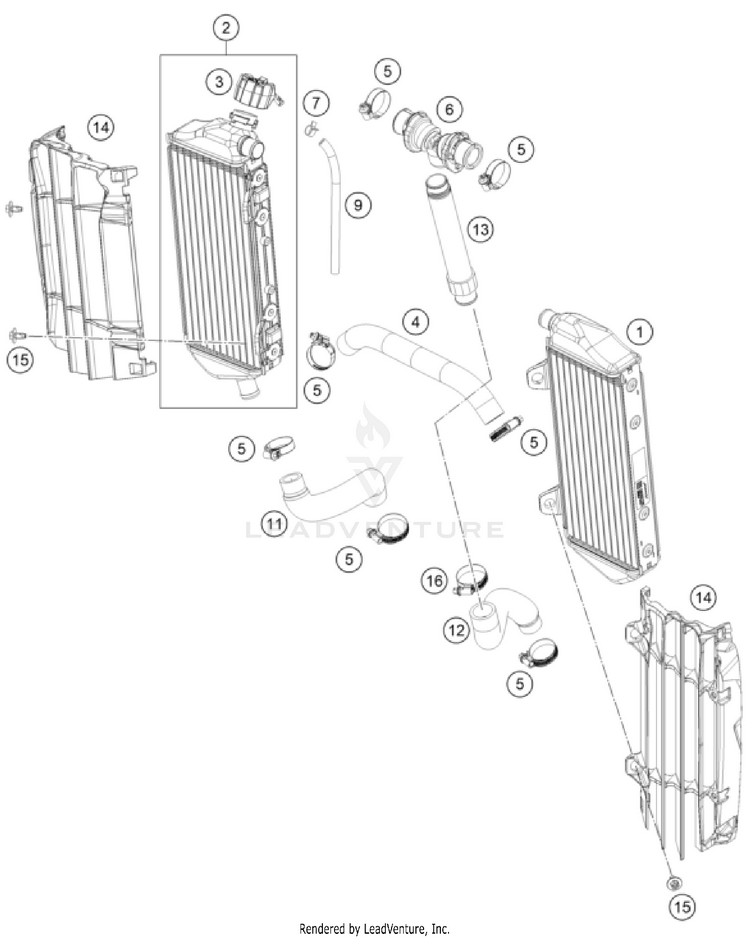

COOLING SYSTEM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A46035007000Radiator left$129.02$109.6710+ In-Stock
2A46035008000Radiator right$162.35$138.0010+ In-Stock
3A46035009000Radiator cap$19.46$16.547 In-Stock
4A46035025000Pre-formed hose radiator left/right$13.30$11.3010+ In-Stock
50310000902900Hose clip 18-29$2.99$2.5410+ In-Stock
6A46035071044Y-piece cmpl.$20.56$17.4810+ In-Stock
759007017000CLAMP YDNAC 10096F (9,6MM)$2.99$2.5410+ In-Stock
950335030001PVC-HOSE 6X9 | ON DEMAND$7.91$6.7210+ In-Stock
11A46035024000Pre-formed hose engine/radiator right$15.28$12.9910+ In-Stock
12A46035023000Pre-formed hose, engine/riser$15.83$13.4610+ In-Stock
13A46035073033Screw-in nozzle$16.05$13.6410+ In-Stock
14A46035036044C1Radiator protection set, black$62.47$53.1010+ In-Stock
150900000601203

(replaces part #
0024060123)

HH ISR collar screw M6x12-10.9 ISA30$1.99$1.6910+ In-Stock
160310000903200Hose clip 20-32$2.99$2.5410+ In-Stock
