2023 Husqvarna FX 350 Timing Drive OEM Parts Diagram

Submodel FX 350 ENGINE - 2023

Shop Aftermarket Parts

TIMING DRIVE

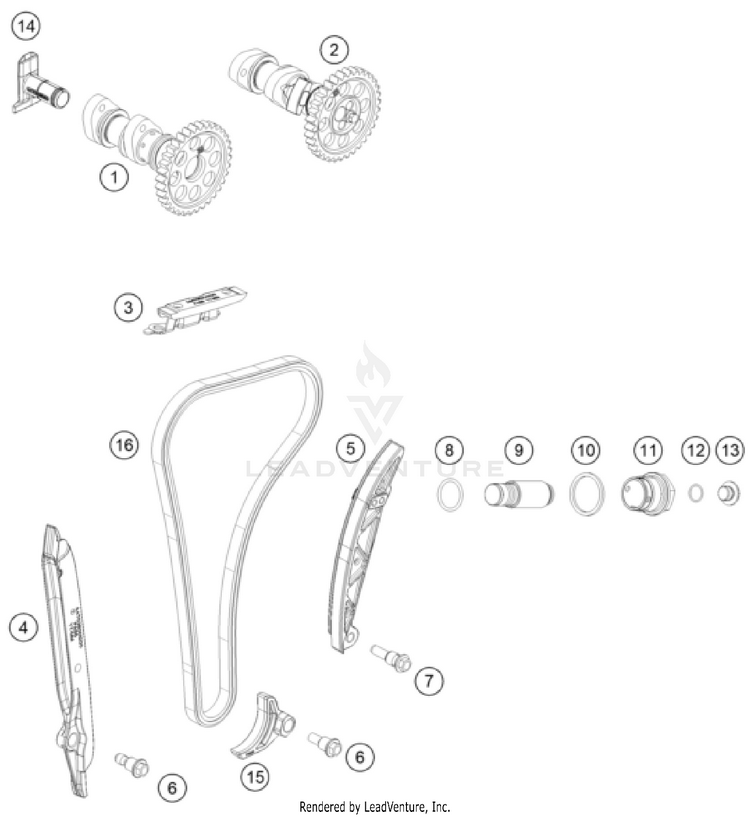

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A47036009000Camshaft inlet valve$201.51$171.28Usually ships in 7-10 business days
2A47036010044Camshaft exhaust valve$297.32$252.72Usually ships in 7-10 business days
3A47036004000Slide bars$18.14$15.42Usually ships in 7-10 business days
4A47036001000Slide bars$10.55$8.97Usually ships in 7-10 business days
579236002000TENSIONING RAIL$25.29$21.5010+ In-Stock
677236001160BUSHING SCREW M6$6.15$5.2310+ In-Stock
777236002160BUSHING SCREW M8$3.99$3.3910+ In-Stock
80770180020o-ring 18.00x2.00 NBR70$2.99$2.5410+ In-Stock
977036003200Chain tension adjuster, hydraulic$62.25$52.9110+ In-Stock
100603242920CU SEAL-RING DIN7603 A24X29X2$3.99$3.3910+ In-Stock
1177336008000HOLDING BOLT M24X1,5$24.19$20.5610+ In-Stock
120770010010o-ring 10.00x1.00 NBR70$2.99$2.5410+ In-Stock
1377236080000

(replaces part #
77236080100)

SCREW PLUG$7.80$6.6310+ In-Stock
14A47036081000Angle piece, engine breather$6.15$5.54Usually ships in 7-10 business days
1577236005000SECURING PROTECTION$3.99$3.3910+ In-Stock
16A47036013000Timing chain$75.01$63.7610+ In-Stock
