2024 Husqvarna FX 350 Clutch Control Ii OEM Parts Diagram

Submodel FX 350 ENGINE - 2024

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

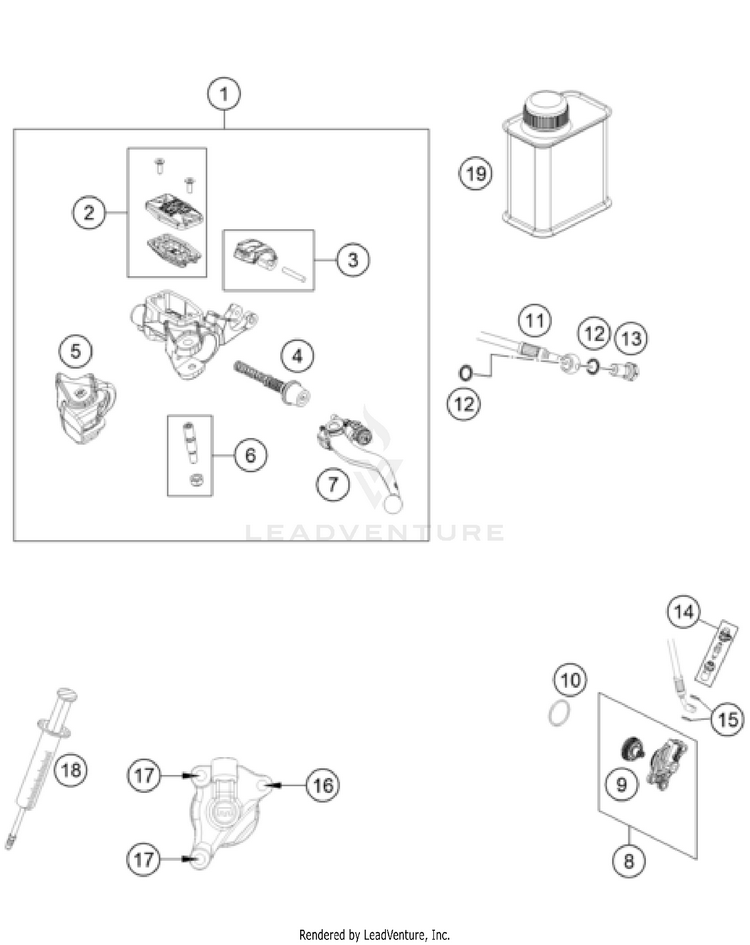

CLUTCH CONTROL II

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A59002030044

(replaces part #
A54002030144)

Clutch Master Cylinder$341.21$290.0310+ In-Stock
2A54002003100clutch reservoir kit$17.15$14.5810+ In-Stock
3A54013005000clamp kit$30.68$26.0810+ In-Stock
4A54002032000kit clutch piston$66.65$56.6510+ In-Stock
5A54002037000clutch lever boot$21.88$18.6010+ In-Stock
6A54013060000Lever screw$12.99$11.0410+ In-Stock
7A54002031000lit clutch lever$92.39$78.5310+ In-Stock
8A39032061044Slave cylinder$99.76$84.801 In-Stock
9A59032066000

(replaces part #
A39032066000)

Kit Piston$61.37$52.168 In-Stock
100770300015O-RING 30,00X1,50 NBR 70$2.99$2.5410+ In-Stock
11A39032063000Clutchpipe$87.88$74.70Usually ships in 7-10 business days
120603100141sealing ring DIN 7603 10x14x1$2.99$2.5410+ In-Stock
13A54013025000bolt M10$15.28$12.9910+ In-Stock
14A54013094000kit bleeder M8$43.11$36.6410+ In-Stock
150603082121SEAL RING CU DIN7603- 8X12X1$3.99$3.3910+ In-Stock
160025060306HH collar screw M6x30 TX30$3.99$3.3910+ In-Stock
170025060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
1850329050000VENT INJEKTION HYDR. CLUTCH-$72.2710+ In-Stock
1900062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
