2024 Husqvarna TC 65 Clutch OEM Parts Diagram

Submodel TC 65 ENGINE - 2024

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

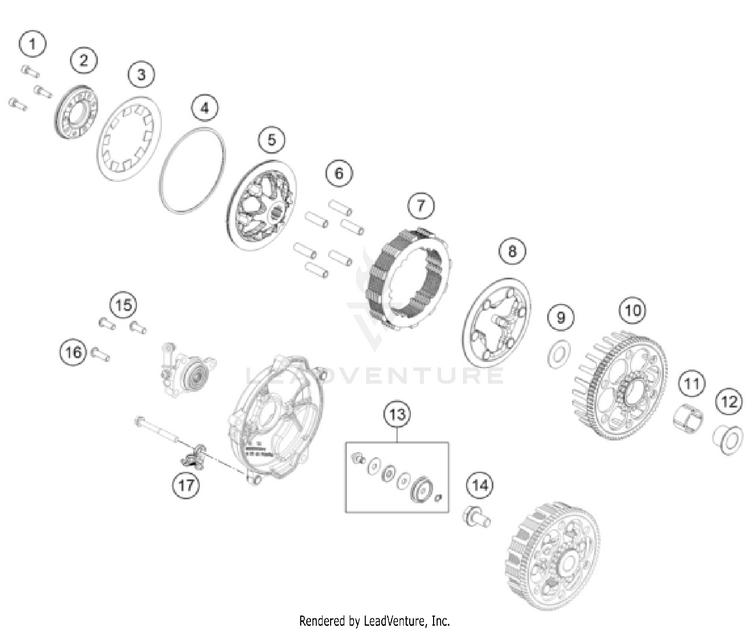

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10912050163AH SCREW DIN0912-M 5X16$1.99$1.6910+ In-Stock
2A40532006000Spring retainer$48.39$41.13Usually ships in 7-10 business days
3A40532005000Clutch spring$10.99$10.3410+ In-Stock
447232013000Inner ring 94x99x1.5$33.76$28.7010+ In-Stock
5A40532002000Inner clutch hub$62.25$52.91Usually ships in 7-10 business days
6A40532004000Clutch sleeve 7.95x27.2$5.60$4.7610+ In-Stock
7A40532010033Clutch plate pack$156.19$132.7610+ In-Stock
8A40532003000preasure plate$56.42$47.96Usually ships in 7-10 business days
946232012000STOP DISC 17,2X32X1,5$2.99$2.5410+ In-Stock
10A40532001075clutch basket$296.55$252.075 In-Stock
110405222817Bearing outer clutch hub$11.54$9.81Usually ships in 7-10 business days
120800001701900Collar sleeve 17x22x18.8$19.02$16.17Usually ships in 7-10 business days
1346232057000PRESSURE PIECE CPL.$36.73$31.2210+ In-Stock
1446132019000HH COLLAR SCREW M10X20$6.70$5.7010+ In-Stock
150073800601600SOval head screw M6x16 Precote$1.99$1.6910+ In-Stock
160073800602000SOval head screw M6x20 TX30 Precote$4.99$4.248 In-Stock
17A40532060050line guide$17.81$15.14Usually ships in 7-10 business days
