2024 Husqvarna TC 65 Ignition System OEM Parts Diagram

Submodel TC 65 ENGINE - 2024

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

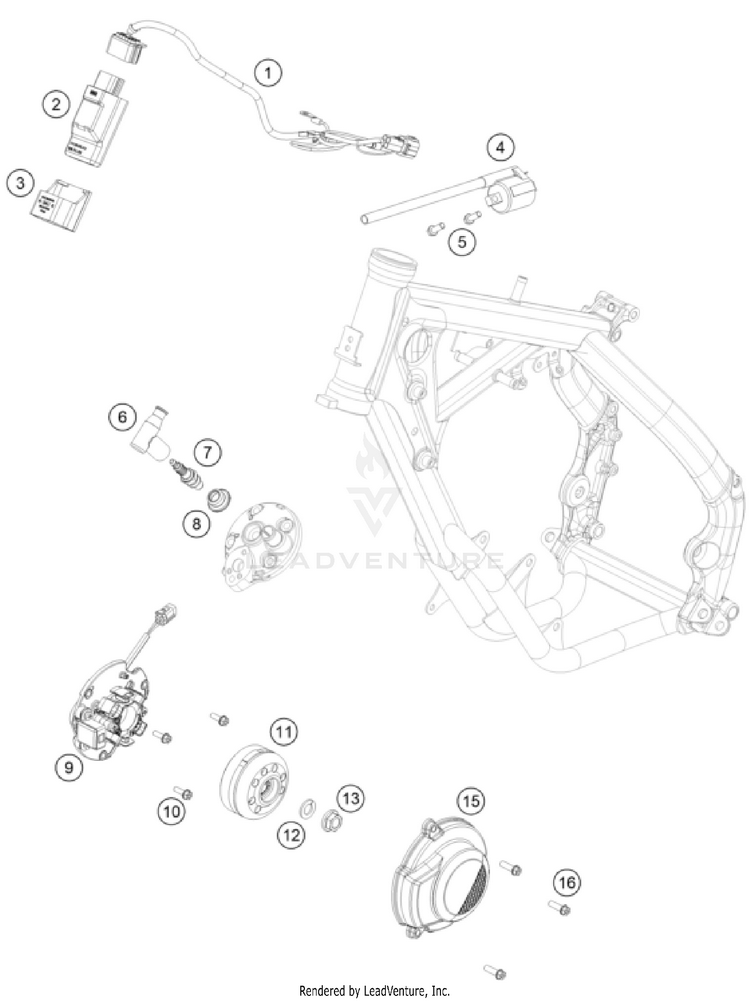

IGNITION SYSTEM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A40511075000Main wiring harness$70.39$59.83
2A40539031000CDI control unit$265.64$225.79Usually ships in 7-10 business days
3A40539030000Rubber support CDI$3.99$3.59Usually ships in 7-10 business days
4A40539006000Ignitionácoil$145.96$124.0710+ In-Stock
50025060166SHH collar screw M6x16 TX30 SL$2.99$2.5410+ In-Stock
646239190000Spark plug connector$40.14$34.1210+ In-Stock
7A40039093012Spark plug AR12C$6.04$5.1310+ In-Stock
8A40539091000Sealing boot$10.99$9.3410+ In-Stock
9A40539004000Stator$301.83$256.5610+ In-Stock
100025050166SHH Collar Screw M5x16 ISA30 SS$1.99$1.6910+ In-Stock
11A40539005000Rotor$186.11$158.19Usually ships in 7-10 business days
1250230029012LOCKING RING VSK 12$2.99$2.5410+ In-Stock
1349030021100

(replaces part #
49030021000)

Collar nut, M12x1, right$2.99$2.5410+ In-Stock
15A40530002000Ignition cover-$42.609 In-Stock
160025060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
