2025 Husqvarna TC 50 Engine Case OEM Parts Diagram

Submodel TC 50 ENGINE - 2025

Shop Aftermarket Parts

ENGINE CASE

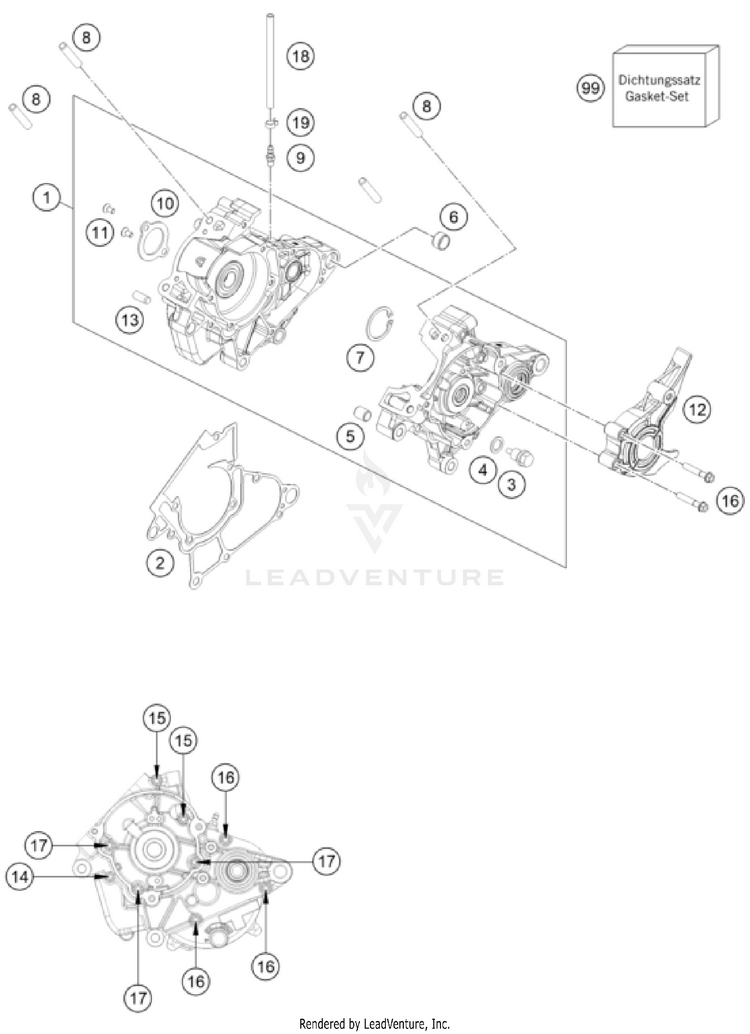

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A40030000044Motorhousing cpl.$577.49$521.47Usually ships in 7-10 business days
245230039000ENGINE CASE GASKET$18.47$15.7010+ In-Stock
358030021100oildrain plug with magnet$13.30$11.3010+ In-Stock
458038022000CU-SEAL RING DIN7603-12X18X1,5$2.99$2.9310+ In-Stock
546230024000DOWEL 12X9X14,5$7.58$6.4410+ In-Stock
658330023000DOWEL 17 X 14 X 9,5$6.48$5.518 In-Stock
70472035150CIRCLIP DIN0472-35X1,5$2.99$2.5410+ In-Stock
846030043000STUD M8X41$6.81$5.7910+ In-Stock
958336020190VACUUM CONECTION M6/3MM '97$6.15$5.2310+ In-Stock
1045230017000BEARING BRACKET$2.99$2.542 In-Stock
110019050106Shex lobe countersunc screw M5x10 - 10.9$2.99$2.5410+ In-Stock
12A40003096000Front sprocket cover$34.86$29.63Usually ships in 7-10 business days
130325080200CYLINDER STUD DIN6325 8X20 M6$2.99$2.5410+ In-Stock
140025060356HH collar screw M6x35 TX30$3.99$3.3910+ In-Stock
150025060556HH collar screw M6x55 TX30$3.99$3.3910+ In-Stock
160025060306HH collar screw M6x30 TX30$3.99$3.3910+ In-Stock
170025060406HH collar screw M6x40 TX30$3.99$3.3910+ In-Stock
1831007007101PVC-HOSE 4X6MM | ON DEMAND$4.99$4.2410+ In-Stock
1945230089000YDNAC-CLAMP 10068 (6,8MM)$1.99$1.6910+ In-Stock
99A40030099000GASKET KIT 50$184.79$157.07Usually ships in 7-10 business days
