2025 Husqvarna TC 50 Transmission OEM Parts Diagram

Submodel TC 50 ENGINE - 2025

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TRANSMISSION

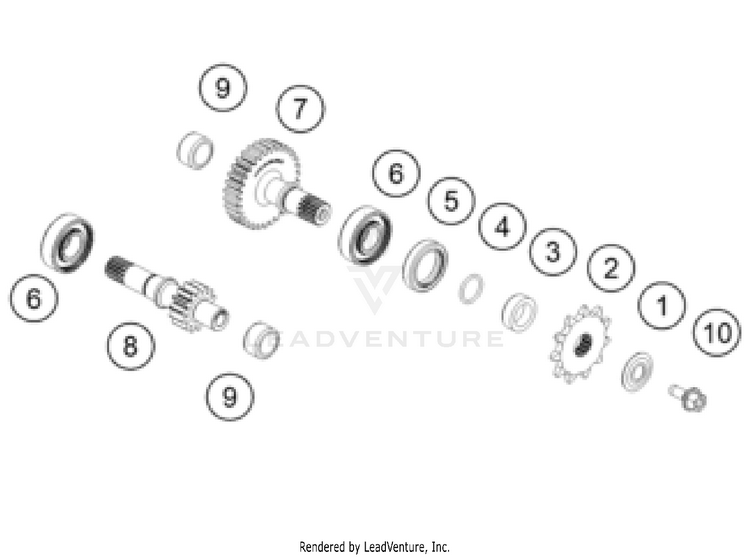

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10020931000100Spring washer 10.2x25x1.0$6.15$5.2310+ In-Stock
2A40033029010Front sprocket 10T | ON DEMAND$34.64$29.4410+ In-Stock
2A40033029011Front sprocket 11T$37.72$32.0610+ In-Stock
345233030000DISANCESPACER F. SPROCKET$16.60$14.1110+ In-Stock
40770015018O-RING 15,00X1,80$2.99$2.5410+ In-Stock
50760223270SHAFT SEAL RING 22X32X7 BSL$10.00$8.5010+ In-Stock
645133028000BALL BEARING 15X35X11$26.28$22.3410+ In-Stock
7A40033010100

(replaces part #
A40033010000)

Countershaft$109.95$93.46Usually ships in 7-10 business days
8A40033001100

(replaces part #
A40033001000)

Main shaft$101.41$86.207 In-Stock
954632095000needle sleeve HK 1412 14x20x12$8.24$7.0010+ In-Stock
100900000601501SPinion screw M6x15 SW10 10.9$7.80$6.6310+ In-Stock
