2026 Husqvarna FE 450 Frame OEM Parts Diagram

Submodel FE 450 US ENGINE - 2026

Shop Aftermarket Parts

FRAME

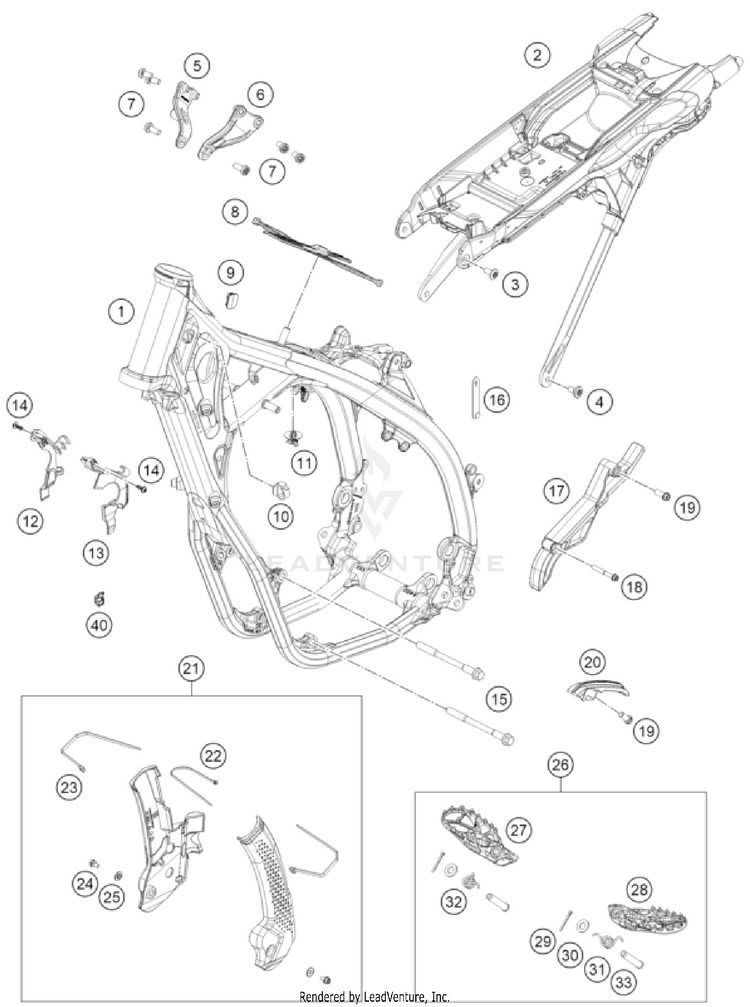

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A39003001100HFFrame$2,441.88$2,205.02Usually ships in 7-10 business days
2A36003002000C1ASubframe$450.79$383.1710+ In-Stock
309000008016U0Special screw M8x16 ISA45 self-locking$1.99$1.6910+ In-Stock
479003003000SPECIAL SCREW M8X18 TORX45 SS$3.99$3.3910+ In-Stock
5A46003014000Engine brace, right$44.21$37.5810+ In-Stock
6A46003013000Engine brace left$42.45$36.0810+ In-Stock
70035080206SSHCS M8x20 TX45$6.26$5.3210+ In-Stock
8A46007012100Fuel tank rubber$11.65$9.9010+ In-Stock
979111013010Cover control head sheet$2.99$2.5410+ In-Stock
1058111076000CABLE SUPPORT KHS NR.150-47610$4.99$4.2410+ In-Stock
1179711013010Cable bracket d8$1.99$1.6910+ In-Stock
12A46003099020Cable bracket/throttle cable guide$4.99$4.247 In-Stock
13A46003099010Cable bracket$4.99$4.244 In-Stock
140081050141EJOT PT screw K50x14-$2.0810+ In-Stock
1559003013000ENGINEBRAC.SCREW M10X123 WS=13$11.10$9.4410+ In-Stock
1660011093075RUBBER CABLE TIE 75MM 03$6.15$5.2310+ In-Stock
17A46003096000Front sprocket cover$16.05$13.646 In-Stock
180025060456HH COLLAR SCREW M6X45 TX30$2.99$2.5410+ In-Stock
190025080206HH collar screw M8x20$2.99$2.5410+ In-Stock
20A46003053000Chain slider below$7.47$6.3510+ In-Stock
21A36003094100HAFrame protection set$20.99$17.846 In-Stock
2244011176200CABLE TIE 200/2,5MM BLACK$0.00$0.00Not Shipping
2344011076200CABLE TIE 200/3,6MM BLACK$1.99$1.8810+ In-Stock
240025050106HH collar screw M5x10 TX30$1.99$1.6910+ In-Stock
2554803092060BUSH F. FRAME PROTECTION 03$4.99$4.2410+ In-Stock
26A46003137033Footpeg set$150.36$127.8110+ In-Stock
27A46003141000Footpeg right$92.83$78.9110+ In-Stock
28A46003140000Footpeg left$92.83$78.9110+ In-Stock
290094032250

(replaces part #
0094032253)

PIN DIN 0094-3.2X25 NIRO-$2.0810+ In-Stock
300125100003washer DIN 125 A 10.5$2.99$2.5410+ In-Stock
31A46003044000Footrest spring left$1.99$1.6910+ In-Stock
32A46003045000Footrest spring right$1.99$1.6910+ In-Stock
3354803044000PIN FOR FOOT PED 51.5X9.8 MM$14.62$12.4310+ In-Stock
40A49003099030Cable protection$5.16$4.64Usually ships in 7-10 business days
