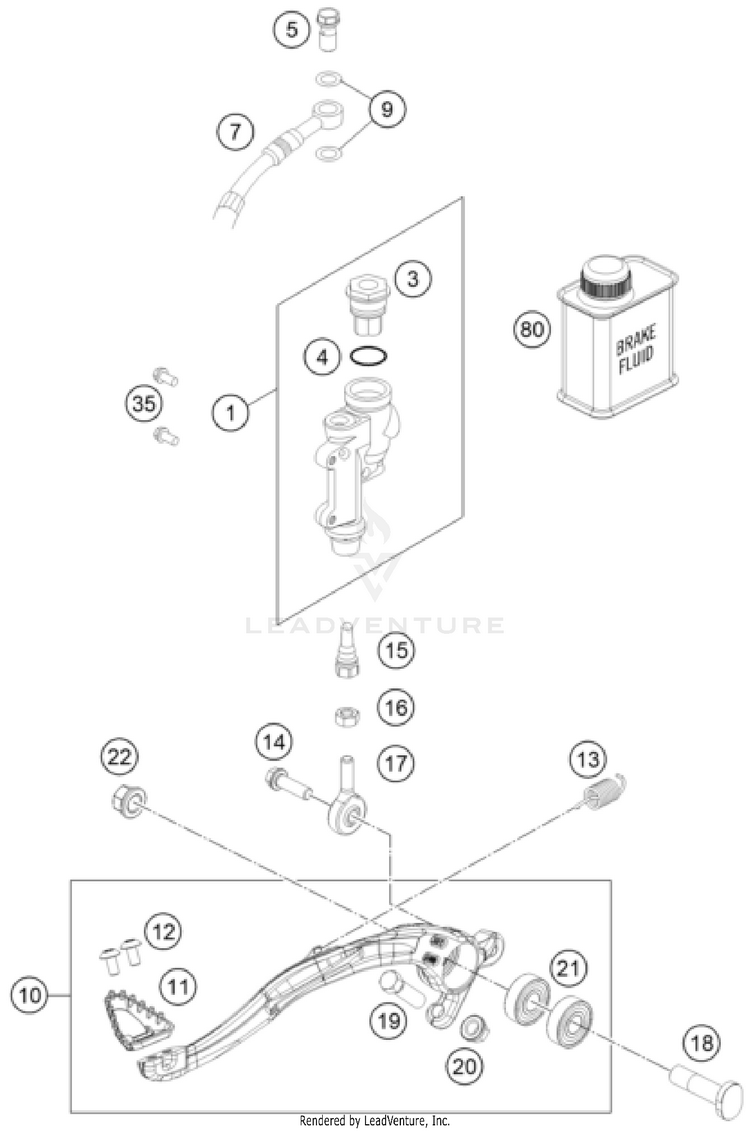

2026 Husqvarna FE 450 Rear Brake Control OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	77013060044	REAR BRAKE CYLINDER CPL.SX 09	$360.13	$306.11	10+ In-Stock
3	54813062100	REAR BRAKE CYL. COVER CPL. 04	$53.01	$45.06	10+ In-Stock
4	54813063000	FOOT-BRAKE CYL. GASKET SX 03	$11.21	$9.53	10+ In-Stock
5	54813020100	banjo bolt M10x1x19 black	$11.65	$9.90	10+ In-Stock
7	77213070300	Rear Brakehose	$116.37	$98.91	10+ In-Stock
9	0603100141	sealing ring DIN 7603 10x14x1	$2.99	$2.54	10+ In-Stock
10	A46013050144 (replaces part # A46013050044)	Brake pedal cmpl.	$120.29	$102.25	10+ In-Stock
11	A48013051000 (replaces part # 79413051000)	Step brake lever	$35.08	$29.82	10+ In-Stock
12	58605083010	SCREW TORX M5X10 05	$2.99	$2.83	10+ In-Stock
13	A46003062000	Retracting spring	$2.99	$2.54	10+ In-Stock
14	0025060206S	HH collar screw M6x20 TX30	$2.99	$2.54	10+ In-Stock
15	54813056000	PUSH ROD L=28MM 03	$18.69	$15.89	10+ In-Stock
16	0934060003	hex nut DIN 934 M6	$1.99	$1.69	10+ In-Stock
17	54813055100	Joint head CMP6	$23.42	$19.91	10+ In-Stock
18	47213054000	Screw foot brake lever	$4.99	$4.24	10+ In-Stock
19	59001037000	SPECIAL SCREW M8X26 WS=10	$3.99	$3.39	10+ In-Stock
20	46030045000	flanged nut M8 WS10	$9.23	$7.85	10+ In-Stock
21	0625060002	deep groove ball bearing SKF 6000-2RS1	$14.51	$12.33	10+ In-Stock
22	55530044000 (replaces part # 54630044000)	Collar nut M10-SW13 ZnNi	$1.99	$1.69	10+ In-Stock
35	0025060126	HH collar screw M6x12 TX30	$3.99	$3.39	10+ In-Stock
80	00062030000	BRAKE FLUID DOT5.1 0,25L	$15.99	$13.59	10+ In-Stock
