2007 Kawasaki MULE 3010 4X4 Diesel Drive Converter OEM Parts Diagram

Submodel KAF950B7F Mule 3010 Diesel 4X4

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

DRIVE CONVERTER

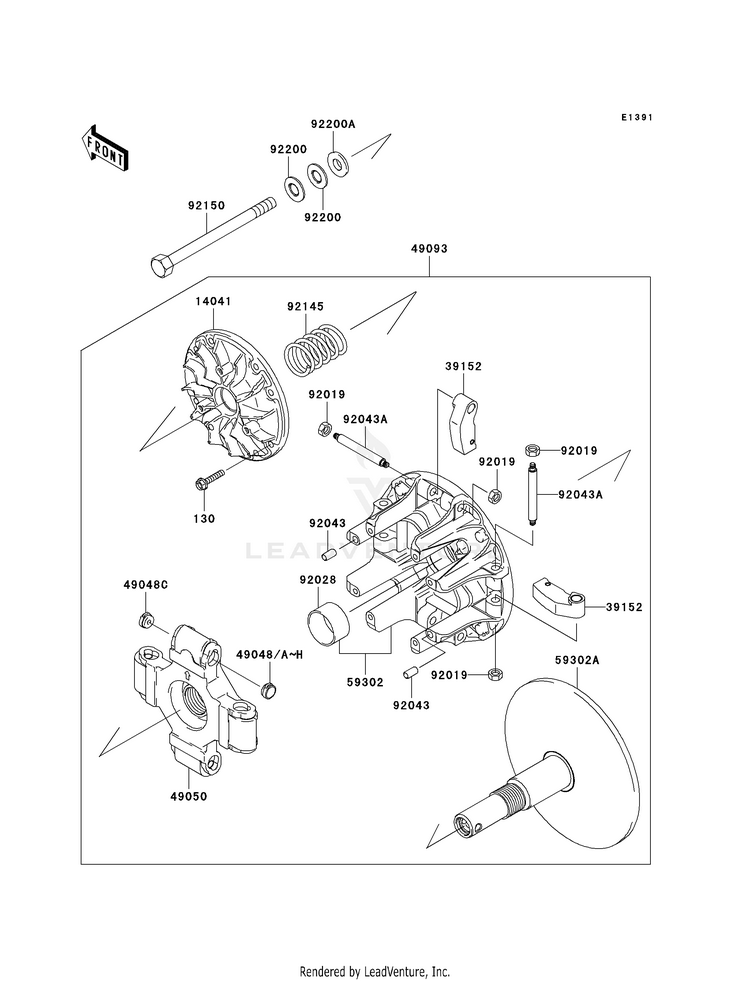

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130CA0630

(replaces part #
130T0630)

BOLT-FLANGED,6X30
10+ In-Stock
1404114041-0644

(replaces part #
14041-1168)

COVER-COMP
Usually ships in 7-10 business days
3915239152-0106

(replaces part #
39152-1103)

WEIGHT-RAMP
Usually ships in 7-10 business days
4904849048-1087SHOE,T=7.2 | (OPTION)
8 In-Stock
49048A49048-1088SHOE,T=7.3 | (OPTION)
8 In-Stock
49048B49048-1089SHOE,T=7.4 | (OPTION)
8 In-Stock
49048C49048-1090SHOE,T=7.5
10+ In-Stock
49048D49048-1091SHOE,T=7.6 | (OPTION)
10+ In-Stock
49048E49048-1092SHOE,T=7.7 | (OPTION)
10+ In-Stock
49048F49048-1093SHOE,T=7.8 | (OPTION)
10+ In-Stock
49048G49048-1094SHOE,T=7.9 | (OPTION)
10+ In-Stock
49048H49048-1095SHOE,T=8.0 | (OPTION)
7 In-Stock
4905049050-0565

(replaces part #
49050-1083)

SPIDER
Usually ships in 7-10 business days
4909349093-0113

(replaces part #
49093-1077)

CONVERTER-ASSY-DRIVE
Usually ships in 7-10 business days
5930259302-0119

(replaces part #
59302-1102)

SHEAVE-COMP,MOVABLE
Usually ships in 7-10 business days
59302A59302-1103SHEAVE-COMP
Usually ships in 7-10 business days
9201992019-008NUT,LOCK,6MM
10+ In-Stock
9202892139-1244

(replaces part #
92028-1975)

BUSHING
5 In-Stock
9204392043-1263PIN,6.2X8X14
10+ In-Stock
92043A92043-0809

(replaces part #
92043-1699)

PIN
Usually ships in 7-10 business days
9214592145-0038SPRING,DRIVE
Usually ships in 7-10 business days
9215092150-1008BOLT,12X163.5
4 In-Stock
9220092200-1504WASHER,SPRING
4 In-Stock
92200A92200-1634WASHER
2 In-Stock
