1996 KTM 620 RXCe Fenders, Mask OEM Parts Diagram

Submodel 620 RXC Chassis - 1996

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Fenders, Mask

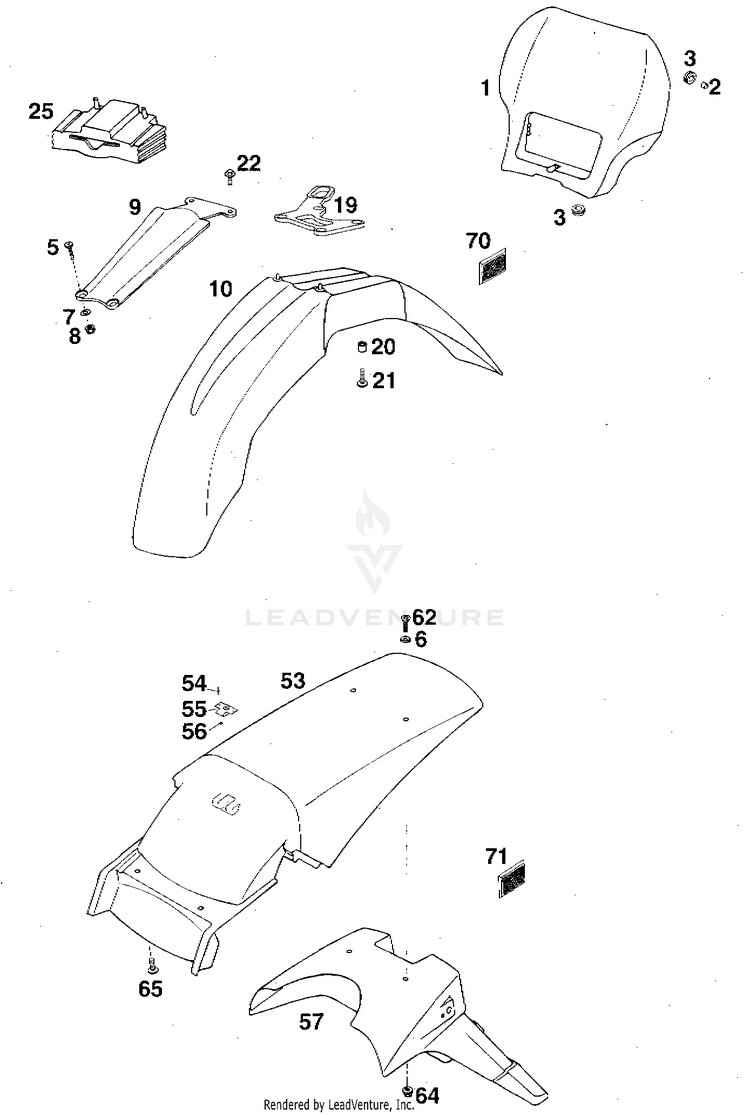

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150211401000HEADLIGHT MASK WHITE | KTM'93-$57.30Not Shipping
258011039000SPACER BUSHING 6,5 X 8 X 7$2.99$2.6910+ In-Stock
331008060000rubber grommet D=8mm open$2.99$2.5410+ In-Stock
50966050163OVAL HEAD SCREW DIN0966-M 5X16$1.99$1.6910+ In-Stock
640006006000WASHER 6MM$1.99$1.6910+ In-Stock
70021050003washer DIN 9021 A - 5.3$1.99$1.6910+ In-Stock
80985050003SELF LOCKING NUT DIN0985-M 5$2.99$2.5410+ In-Stock
950208009100FENDER BRACE VIOLET '95 | 95$11.36$9.66Not Shipping
1050208410000FRONT FENDER WHITE '93 | 93$58.41$49.65Not Shipping
1954608019200SPEEDOMETER CABLE GUIDE '96 | 96$4.19$3.77Not Shipping
2050208020000SPACER BUSHING 7X10X7,5$4.99$4.2410+ In-Stock
210014060203HH COLLAR SCREW M 6X20 WS=8 | SW=8$2.99$2.5410+ In-Stock
220024060156

(replaces part #
0014060153)

HH collar screw M6x15 TX30 | SW=8$3.99$3.3910+ In-Stock
2550211402000SPACER FOR HEADLIGHT MASK '93 | 93-$9.52Not Shipping
5358308013200FENDER REAR WHITE '96 | 96$42.94$36.50Not Shipping
540011320800DUMMY RIVET 3,0X 8 STEEL$0.31$0.28Not Shipping
5558307042051THRUST BEARING QUICK RELEASE$5.45$4.90Not Shipping
560134030003WASHER DIN0134- 3,2$1.65$1.48Not Shipping
5758308013051NUMBER PLATE CARRIER EGS '93 | 93$54.27$46.13Usually ships in 7-10 business days
620991060202

(replaces part #
0991060203)

FLAT HEAD DIN7991-M 6X20$2.99$2.5410+ In-Stock
6456509064000SELF LOCKING NUT M6$0.00$0.00Not Shipping
650024060136

(replaces part #
0014060133)

HH collar screw M6x13 TX30 | SW=8$3.99$3.3910+ In-Stock
7016512180000REFLECTOR ORANGE FRONT$0.00$0.00Not Shipping
7116512180100SIDE REFLECTOR RED REAR$8.35$7.1010+ In-Stock
