1996 KTM 620 RXCe Hand Brake Cylinder OEM Parts Diagram

Submodel 620 RXC Chassis - 1996

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Hand Brake Cylinder

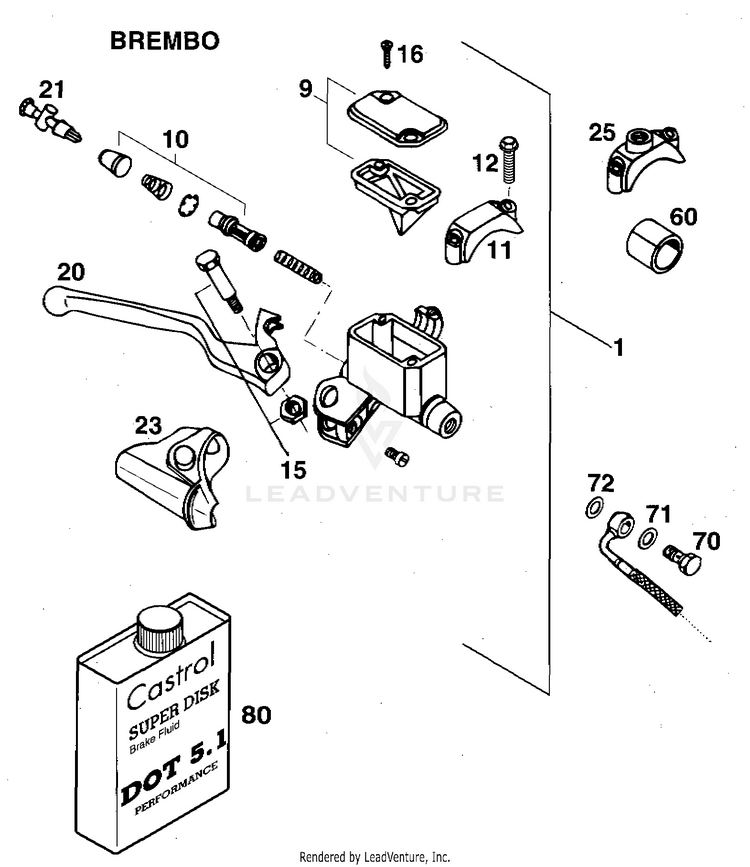

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150213001044HANDBRAKE CYLINDER BREMBO '94 D=11MM | BREMBO '94$168.89$143.56Not Shipping
950213012000COVER CPL.$37.50$31.884 In-Stock
1050213050000REPAIR KIT PISTON 11MM$36.40$30.942 In-Stock
1154413011000CLAMP BREMBO$20.99$17.84Not Shipping
120025060256

(replaces part #
0015060253)

HH collar screw M6x25 TX30 | SW=8$3.99$3.3910+ In-Stock
1550213015000LEVER SCREW CPL.$13.19$11.21Not Shipping
160965050163FLAT HEAD SCREW DIN0965-M 5X16$2.99$2.5410+ In-Stock
2050213020000HAND BRAKE LEVER LOOSE BREM'94 | BREMBO '94$29.47$25.0510+ In-Stock
2150213021000ADJUSTING SCREW CPL.$23.97$20.378 In-Stock
2350213023000PROTECTION CAP BREMBO'94 | BREMBO '94$26.94$22.904 In-Stock
2558012040150CLAMP FOR MIRROR '94 | 94$26.83$22.8110+ In-Stock
6050202010000SPACER BUSHING 22X28X22PVC | (As Required)$3.14$2.83Usually ships in 7-10 business days
7050213025000HOLLOW SCREW M10X1X19$7.69$6.5410+ In-Stock
7142013026000CU-SEAL RING DIN7603-10X16X1,5$2.41$2.0510+ In-Stock
7242013226000CU-SEAL RING DIN7603-10X16X1$2.99$2.5410+ In-Stock
8006054BRAKE FLUID DOT 5.1$0.00$0.00Not Shipping
