1996 KTM 620 RXCe Ignition System Sem OEM Parts Diagram

Submodel 620 RXC Engine - 1996

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Ignition System Sem

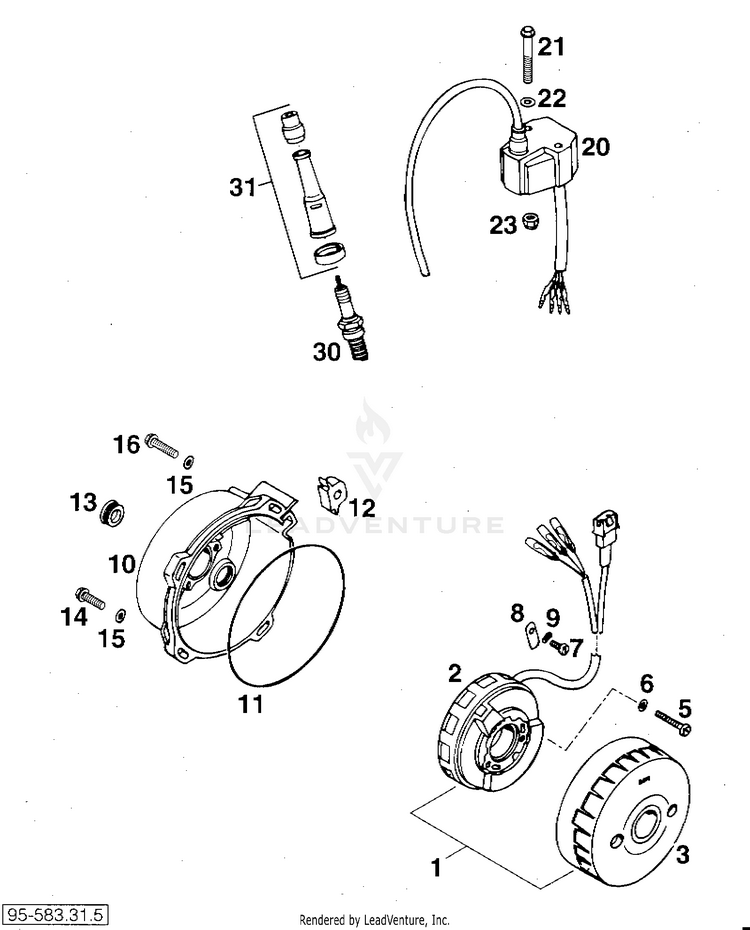

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
158031002100IGNITION SEM K11/60G-08 LEFT-$438.89Not Shipping
258031002050STATOR LOOSE ''13''$422.05$358.74Not Shipping
358031002051ROTOR LOOSE$178.09$151.38Not Shipping
50084050303CYLINDER SCREW DIN0084-M 5X30A$0.00$0.00Not Shipping
60125050003WASHER DIN0125-A 5,3$1.99$1.6910+ In-Stock
70500050083SPECIAL SCREW DIN7500-M 5X 8$0.00$0.00Not Shipping
850031003000RETAINING PLATE$3.14$2.83Usually ships in 7-10 business days
90137050003SPRING WASHER DIN0137-B 5$0.00$0.00Not Shipping
1058030002200IGNITION COVER BLACK$197.98$168.28Usually ships in 7-10 business days
110770020490O-RING 126,72X1,78 B70$4.99$4.49Usually ships in 7-10 business days
1258031004000RUBBER SLEEVE$5.79$5.21Not Shipping
1358030002050PLUG M18X1,5$8.39$7.55Usually ships in 7-10 business days
140025050206

(replaces part #
0015050203)

HH collar screw M5x20 TX30 | SW=8$2.99$2.5410+ In-Stock
150125050003WASHER DIN0125-A 5,3$1.99$1.6910+ In-Stock
160025060256

(replaces part #
0015060253)

HH collar screw M6x25 TX30 | SW=8$3.99$3.3910+ In-Stock
2058031006000IGNITION COIL TM 14-05-$151.88Not Shipping
210025060456

(replaces part #
0015060453)

HH COLLAR SCREW M6X45 TX30 | SW=8$2.99$2.5410+ In-Stock
220125060003WASHER DIN0125-A 6,4$1.99$1.6910+ In-Stock
230985060003SELF LOCK. NUT DIN0985-M 6$2.99$2.5410+ In-Stock
3058439093009

(replaces part #
58031093005)

SPARK PLUG NGK DPR8EA-9$10.00$8.507 In-Stock
3158031010000SPARK PLUG CONNECT.SD 05FG NGK | NGK$15.99$13.59Not Shipping
