Speedometer

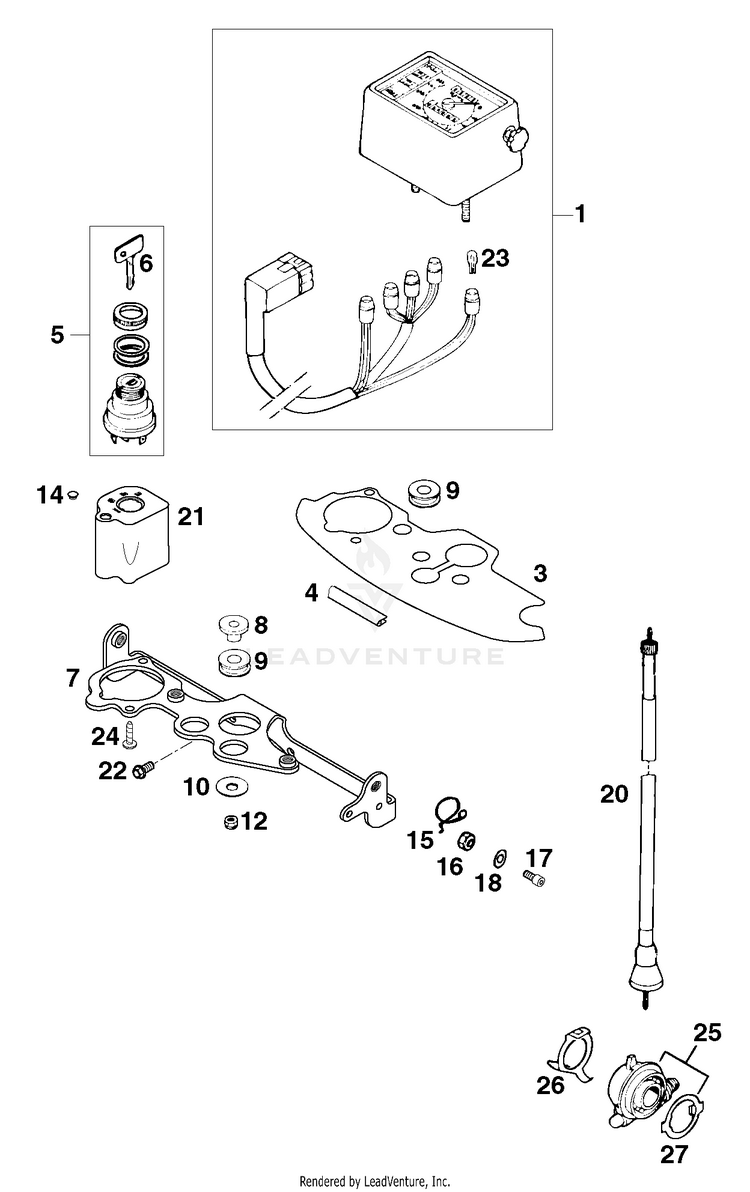

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
151114065100SPEEDOMETER NIPPON SEIKI MPH$0.00$0.00Not Shipping
351111084100COVER FOR CONSOLE '97$0.00$0.00Not Shipping
458312085100EDGE PROTECTOR PER METER$26.50$22.52Usually ships in 7-10 business days
544611466000IGNITION LOCK 7-P CEV$0.00$0.00Not Shipping
640011166000KEY BLANK RED ''O'' GRIP$10.59$9.00Usually ships in 7-10 business days
758411003000MASK BRACKET '97-$39.34Not Shipping
854635036000BUSHING$1.59$1.35Not Shipping
941001052000RUBBER SLEEVE D=12MM$4.99$4.2410+ In-Stock
100021060003WASHER DIN9021-A 6,4$2.99$2.5410+ In-Stock
120985060003SELF LOCK. NUT DIN0985-M 6$2.99$2.5410+ In-Stock
1436111021000PLUG$1.04$0.88Not Shipping
1558011008000GUIDE FOR BRAKE HOSE$4.68$4.21Not Shipping
160985050003SELF LOCKING NUT DIN0985-M 5$2.99$2.5410+ In-Stock
170912050123AH SCREW DIN0912-M 5X12$2.99$2.5410+ In-Stock
180125050003WASHER DIN0125-A 5,3$1.99$1.6910+ In-Stock
2056511188500SPEEDOM.CABLE M12/M12 980MM$42.89$36.46Not Shipping
2158411066050HOUSING FOR IGNITION LOCK '97$0.00$0.00Not Shipping
220025060126

(replaces part #
0015060123)

HH collar screw M6x12 TX30$3.99$3.3910+ In-Stock
2349111425200PAC

(replaces part #
49111425000)

ULB 12V 2,3W (W2X4,6D)$2.99$2.5410+ In-Stock
240016060203SPECIAL SCREW Z 6,0X20$1.15$1.04Usually ships in 7-10 business days
2558111052100SPEEDOMETER DRIVE 748217(3,0)$47.59$40.45Not Shipping
2658111052150BRACKET FOR SPEEDOMETER DRIVE$5.99$5.39Not Shipping
2758111053100DRIVING DOG F.SPEEDOM.DRIVE'92$7.23$6.51Not Shipping
