2001 KTM 65 SX Cylinder OEM Parts Diagram

Submodel 65 SX Chassis & Engine - 2001

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

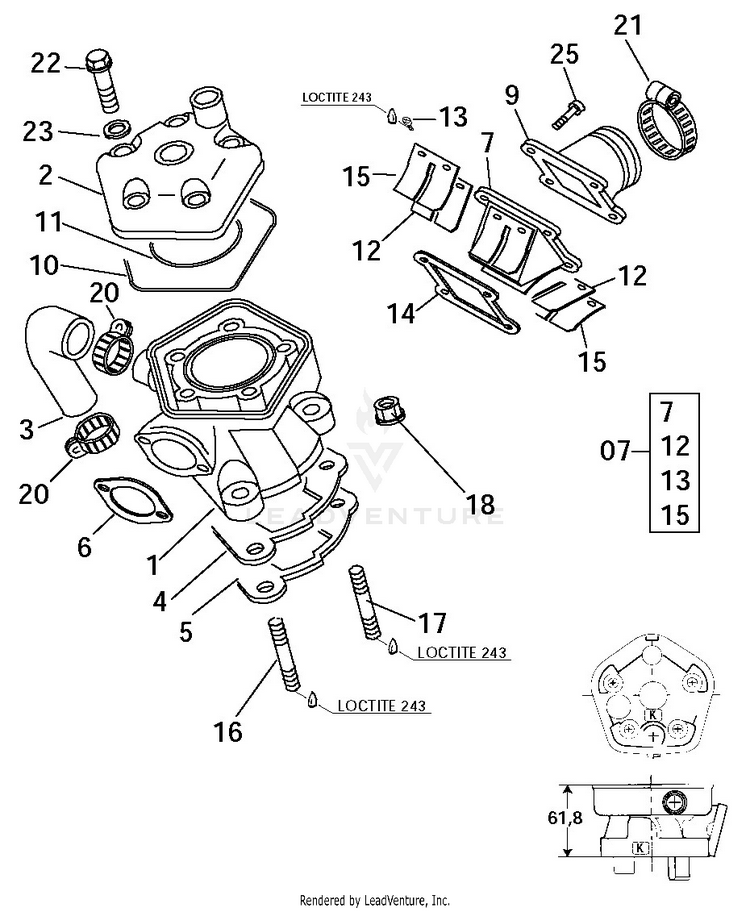

Cylinder

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146030005500CYLINDER W.PISTON 45MM „K" 65CCM$695.41$591.108 In-Stock
246030006600CYLINDERHEAD ''K'' 65CCM '99 | 99$212.69$180.79Usually ships in 7-10 business days
346035027000PRE-FORM.HOSE CYL.-CLUTCH COV.$9.56$8.136 In-Stock
446030035050CYLINDER BASE GASKET 0,5 MM | (As Required)$12.20$10.3710+ In-Stock
546030035020CYLINDER BASE GASKET 0,2 MM | (As Required)$14.07$11.9610+ In-Stock
646030046000EXHAUST GASKET 60/65 CCM$8.57$7.28Not Shipping
0746030051144MEMBRANE HOUSING CPL.65SX 2001 | 2001$86.29$73.35Not Shipping
946030050000INTAKE FLANGE$82.71$70.30Not Shipping
1046030037000O-RING 94,97X1,78 | 78$8.63$7.34Not Shipping
1146030036000O-RING 53,7X1,78 VITON$10.66$9.0610+ In-Stock
1246030052000MEMBRANE LOOSE 60/65 CCM$19.57$16.6310+ In-Stock
130985030063FLAT HEAD SCREW DIN7985-M 3X6$1.99$1.6910+ In-Stock
1446030049000INTAKE VALVE GASKET$2.73$2.32Not Shipping
1646030043000STUD M8X41$6.81$5.7910+ In-Stock
1746030043100STUD M8X44$5.87$4.99Not Shipping
1846030045000flanged nut M8 WS10$9.23$7.8510+ In-Stock
200310000902900

(replaces part #
10001020000)

Hose clip 18-29$2.99$2.5410+ In-Stock
2131001027000HOSE CLAMP 32-52MM D5$7.02$5.97Not Shipping
2246030079000CYLINDERHEADSCR.HH-M7X33 2001 | 2001$1.30$1.10Not Shipping
230603070121

(replaces part #
50230032010)

CU-SEAL RING DIN7603- 7,3X12X1$1.99$1.6910+ In-Stock
250912060203AH SCREW DIN0912-M 6X20$2.99$2.5410+ In-Stock
