2001 KTM 65 SX Front Fork Paioli OEM Parts Diagram

Submodel 65 SX Chassis & Engine - 2001

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Front Fork Paioli

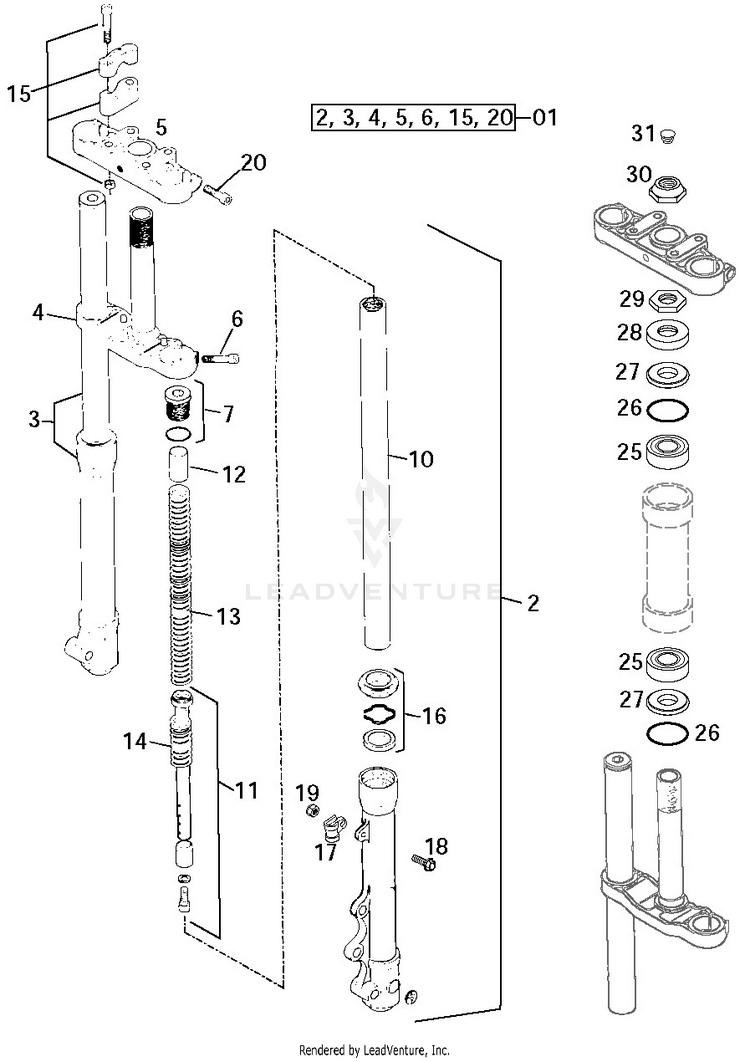

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
0146001000244FORK CPL. D=32MM L=730 2000 | 2000$626.95$532.91Usually ships in 7-10 business days
246001001200FORK LEG L/S CPL. | 2000$0.00$0.00Not Shipping
346001002200FORK LEG R/S CPL. | 2000$0.00$0.00Not Shipping
446001032114BOT.TRIPLE CLAMP CPL. X=14MM$131.16$111.49Usually ships in 7-10 business days
546001034014TOP TRIPLE CLAMP X=14MM-$91.08Usually ships in 7-10 business days
60912080253AH SCREW DIN0912-M 8X25$2.99$2.5410+ In-Stock
745001008000SCREW CAP CPL.-$8.26Not Shipping
1046001003000FORK TUBE D=32MM$94.29$80.15Not Shipping
1146001010100REP. SET CPL. FORK 60/65 '99 | 99$57.61$48.97Not Shipping
1246001022000PRE LOAD BUSH L=115MM$6.99$6.29Not Shipping
1345001021000SPRING-$13.03Not Shipping
1445001050000SPRING$0.00$0.00Not Shipping
1545001038044HANDLEBAR CLAMP CPL.$69.64$59.19Usually ships in 7-10 business days
1645001014000SEAL KIT$30.79$26.17Not Shipping
1745001070000BRAKE CABLE CLAMP RSGU 9/12$6.15$5.2310+ In-Stock
180025050166

(replaces part #
0015050163)

HH collar screw M5x16 TX30 | WS=8$2.99$2.5410+ In-Stock
190985050003SELF LOCKING NUT DIN0985-M 5$2.99$2.5410+ In-Stock
200912080303AH SCREW DIN0912-M 8X30$2.99$2.5410+ In-Stock
2549001081000TAPERED ROLLER BEARING 32004X$49.60$42.1610+ In-Stock
260770360030O-RING 36,00X3,00 NBR$2.99$2.5410+ In-Stock
2746001086000PROTECTION RING 20,1X39X5$10.11$8.5910+ In-Stock
2849001086000COVERING CAP$7.91$6.7210+ In-Stock
2946001043000STEERING HEAD NUT M20X1,5$8.90$8.011 In-Stock
3046001042000CONE NUT M20X1,5$9.61$8.65Usually ships in 7-10 business days
3155009086000PLUG SFL13$2.99$2.5410+ In-Stock
