2007 KTM 200 XC Engine Case OEM Parts Diagram

Submodel 200 XC Chassis - 2007

Shop Aftermarket Parts

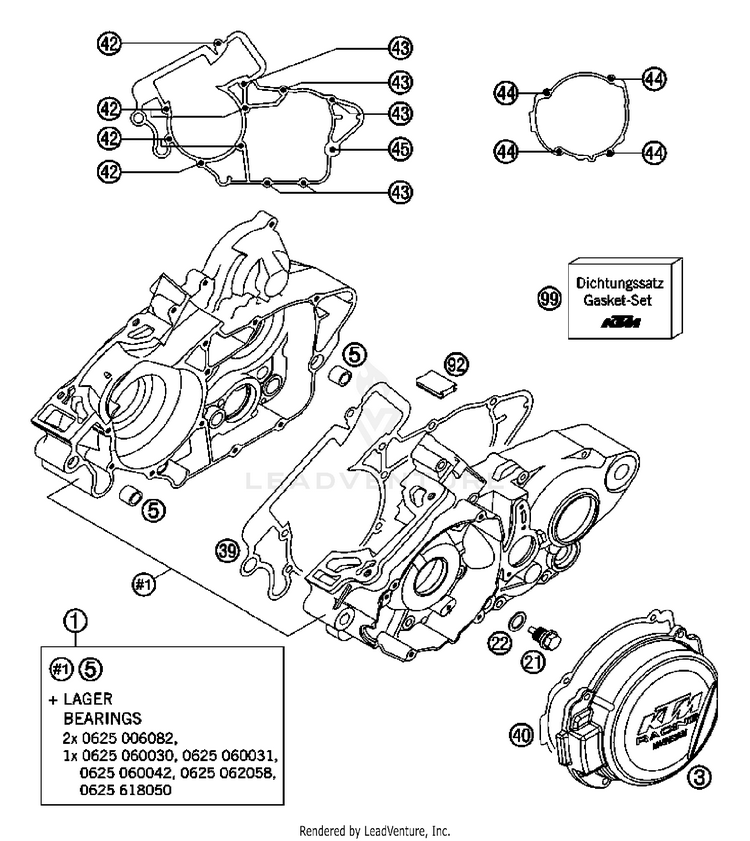

Engine Case

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
152330000644ENGINE CASE CPL M.TRAN.B 06-$722.44Not Shipping
350330002400

(replaces part #
5033000220098)

IGNITION COVER$43.55$37.0210+ In-Stock
554630027000DOWEL BUSHING 13,8X11X12$8.13$6.9110+ In-Stock
2158030021100

(replaces part #
58030021000)

oildrain plug with magnet$13.30$11.3010+ In-Stock
2258038022000CU-SEAL RING DIN7603-12X18X1,5$2.99$2.9310+ In-Stock
3950330039000ENGINE CASE GASKET 0,5MM '98$19.02$16.1710+ In-Stock
4050330040100IGNITION COVER GASKET 2001$16.16$13.7410+ In-Stock
420025060506

(replaces part #
0015060503)

HH collar screw M6x50 TX30$3.99$3.3910+ In-Stock
430015060553HH COLLAR SCREW M 6X55 WS=8$2.09$1.78Not Shipping
440025050166

(replaces part #
0015050163)

HH collar screw M5x16 TX30$2.99$2.5410+ In-Stock
450025060606

(replaces part #
0015060603)

HH collar screw M6x60 TX30$3.99$3.3910+ In-Stock
9250330092000OIL GUARD GROMMET 25X31 '98$3.99$3.39Not Shipping
9950330099201

(replaces part #
50330099100)

GASKET SET$326.03$277.13Usually ships in 7-10 business days
