2007 KTM 200 XC Special Tools OEM Parts Diagram

Submodel 200 XC Chassis - 2007

Shop Aftermarket Parts

Special Tools

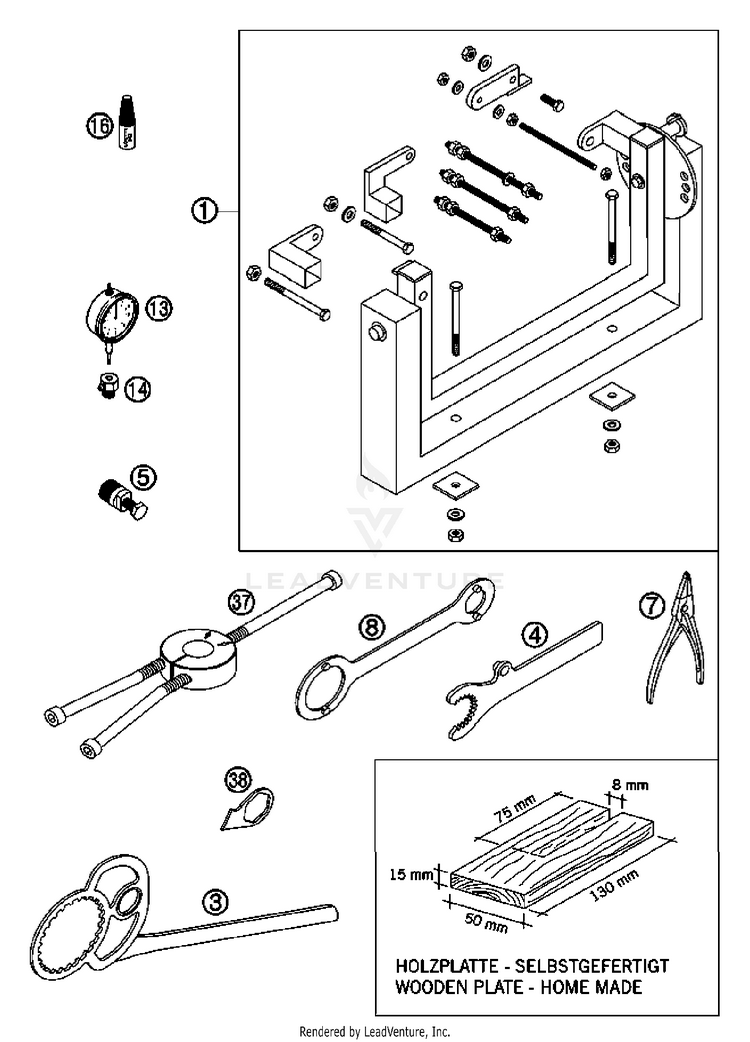

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
156012001044ASSY SUPPORT WITH ENGINEHOLDER-$1,313.85Usually ships in 7-10 business days
350329003000HOLD. PLATE CLUTCH 125/200 '98-$140.982 In-Stock
450329004000HOLDER FOR PRIMARY GEAR '98-$97.801 In-Stock
554629009044MAGNETIC PULLER M 27X1 KOKUSAN-$29.967 In-Stock
751012011000SPECIAL CIRCLIP PLIER-$209.20Usually ships in 7-10 business days
854629012200

(replaces part #
54629012100)

CLUTCH HOLDER-$263.54Usually ships in 7-10 business days
1350112013000DIAL GAUGE 0-10MM-$390.52Usually ships in 7-10 business days
1450112030000DIAL GAUGE SUPPORT-$23.91Usually ships in 7-10 business days
166899785LOCTITE 243 BLUE 5 ML$32.99$28.043 In-Stock
3758429037037MOUNTING TOOL INNER RING NJ206-$83.9310+ In-Stock
3850329038000BRACKET FOR LOCATING DRUM '98$18.36$17.635 In-Stock
