2010 KTM 250 SX-F Ignition System OEM Parts Diagram

Submodel 250 SX-F Engine - 2010

Shop Aftermarket Parts

Ignition System

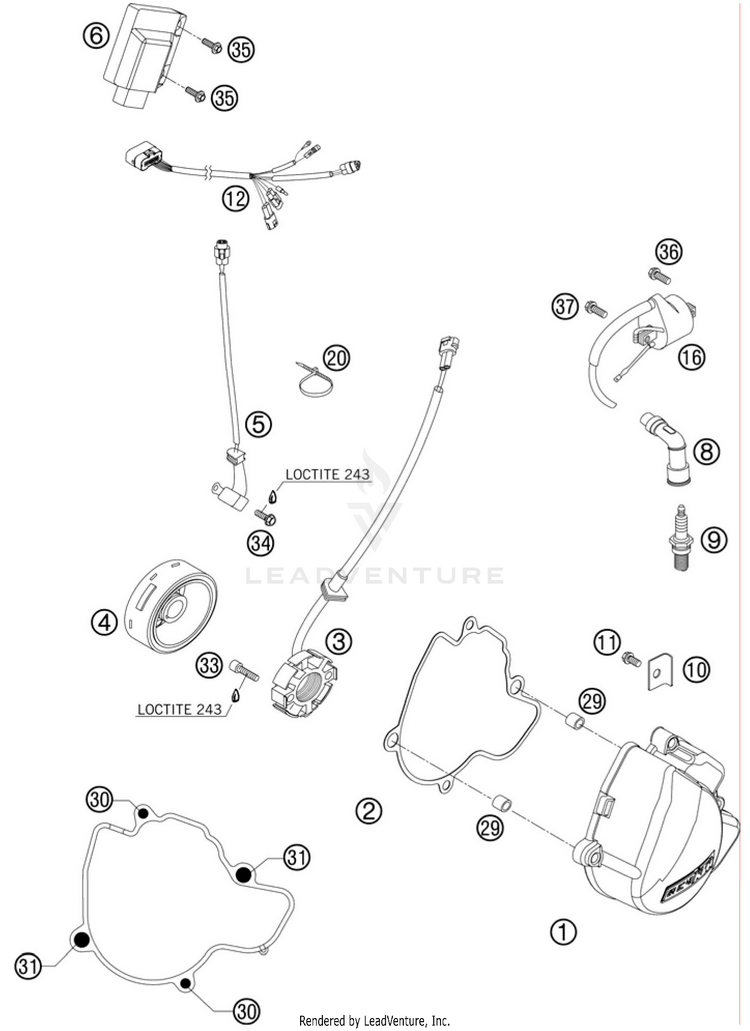

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17703000230015IGNITION COVER 09 | 09$57.09$48.53Usually ships in 7-10 business days
277030040000IGNITION COVER GASKET 05 | 05$4.99$4.2410+ In-Stock
377039004000STATOR 4K3-A 05 | 05$284.56$241.88Not Shipping
477039005000FLYWHEEL 05 | 05$376.82$320.30Usually ships in 7-10 business days
559039034000pulse generator KOKUSAN 4K3-A/B$105.04$89.2810+ In-Stock
677039031700DIGITALBOX 250 SX-F 09 | 09$366.51$311.53Usually ships in 7-10 business days
878039090100

(replaces part #
59039090100)

SPARK PLUG CONNECTOR | 03$44.19$37.5610+ In-Stock
977039093000SPARK PLUG NGK CR9EKB ´05 | ´05$15.83$13.4610+ In-Stock
1077030002050WIRE RETAINING BRACKET 06 | 06$3.73$3.36Usually ships in 7-10 business days
110025060086HH collar screw M6x8 TX30 | TX30$2.99$2.5410+ In-Stock
1259439032100WIRING HARNESS FOR CDI EXC 04 | 04$106.67$90.67Not Shipping
1659039006000IGNITIONCOIL ''IG5128''$77.87$66.1910+ In-Stock
2044011076140

(replaces part #
44011076100)

CABLE TIE 140/2,5MM BLACK | (As Required)$1.99$1.6910+ In-Stock
2949030090100

(replaces part #
49030090000)

DOWEL 9,8 X7X10$2.99$2.8310+ In-Stock
300025060256HH collar screw M6x25 TX30 | TX30$3.99$3.3910+ In-Stock
310025060306HH collar screw M6x30 TX30 | TX30$3.99$3.3910+ In-Stock
330912050253AH SCREW DIN0912-M 5X25$1.20$1.0210+ In-Stock
340025050166HH collar screw M5x16 TX30 | TX30$2.99$2.5410+ In-Stock
350023060123COLLAR SCREW M6X12 TX | TX$2.99$2.5410+ In-Stock
360025060166HH collar screw M6x16 TX30 | TX30$2.99$2.5410+ In-Stock
370025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
