2011 KTM 105 SX Brake Caliper Front OEM Parts Diagram

Submodel 105 SX Chassis - 2011

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

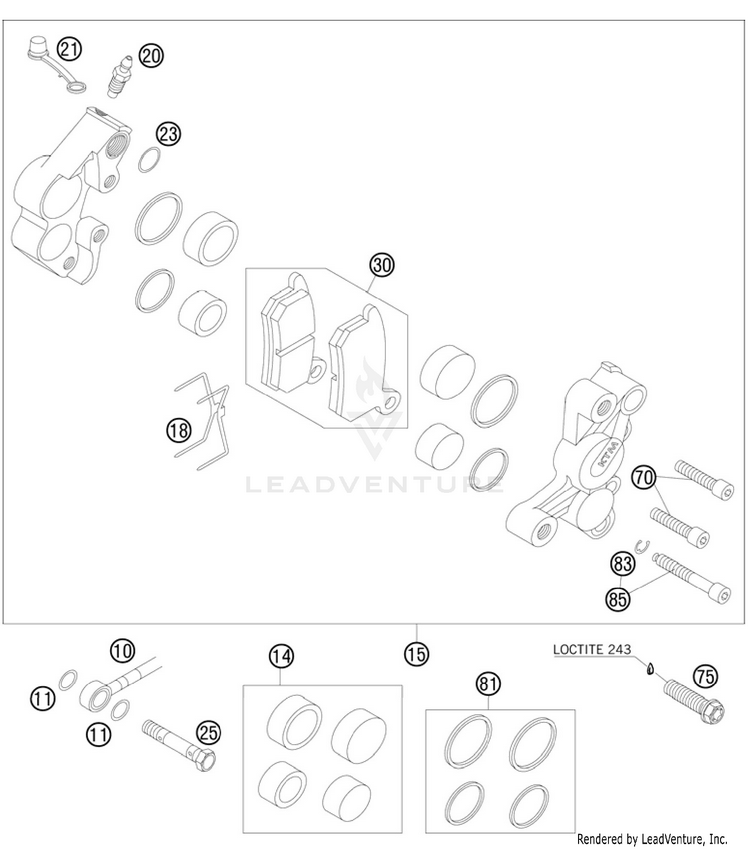

Brake Caliper Front

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1047013010100

(replaces part #
47013010000)

HOSE-BRAKE 85 SX 2012 | 03$129.90$110.423 In-Stock
110770080019O-RING 8,00X1,00 FORMULA$2.99$2.5410+ In-Stock
1446113019050REPAIR KIT BRAKEPISTON$31.56$26.8310+ In-Stock
1846213018000

(replaces part #
46113018000)

RETAINING SPRING 65 SX$9.01$7.6610+ In-Stock
2047013020000BLEEDER SCREW M6$10.99$9.3410+ In-Stock
2147013021000CAP FOR BLEEDER SCREW$7.91$6.7210+ In-Stock
230770100019O-RING 10X1 EPDM$5.93$5.0410+ In-Stock
2547013125000HOLLOW SCREW M8X38,8$17.59$14.951 In-Stock
3046113030000BRAKE PAD SET FRONT 2002 | 2002$38.27$32.5310+ In-Stock
700912060283AH SCREW DIN0912-M 6X28$2.99$2.5410+ In-Stock
750025080306HH collar screw M8x30 | TX40$3.62$3.0810+ In-Stock
8146113019000REPAIR KIT SEAL RING 2002 | 2002$24.52$20.845 In-Stock
830799040009TAB WASHER DIN6799-RA 4,0$1.99$1.6910+ In-Stock
8546113125000AH SCREW + CIRCLIP 2002 | 2002$16.49$14.0210+ In-Stock
