2011 KTM 150 SX Engine Case OEM Parts Diagram

Submodel 150 SX Chassis - 2011

Shop Aftermarket Parts

Engine Case

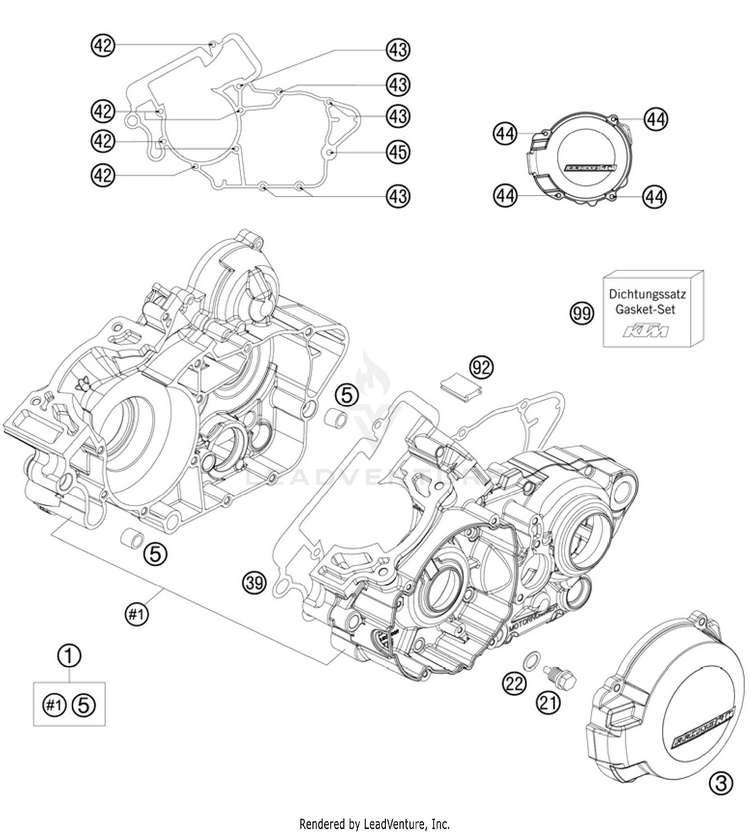

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
151530000044ENGINE CASE CPL W.TRAN.BEAR.07$938.39$847.36Not Shipping
350330002400IGNITION COVER$43.55$37.0210+ In-Stock
554630027000DOWEL BUSHING 13,8X11X12$8.13$6.9110+ In-Stock
2158030021100

(replaces part #
58030021000)

oildrain plug with magnet$13.30$11.3010+ In-Stock
2258038022000CU-SEAL RING DIN7603-12X18X1,5$2.99$2.9310+ In-Stock
3950330039000ENGINE CASE GASKET 0,5MM '98 | '98$19.02$16.1710+ In-Stock
420025060506HH collar screw M6x50 TX30 | TX30$3.99$3.3910+ In-Stock
430025060556HH collar screw M6x55 TX30 | TX30$3.99$3.3910+ In-Stock
440014050163HH COLLAR SCREW M 5X16 WS=6 | WS=6$2.99$2.5410+ In-Stock
450025060606HH collar screw M6x60 TX30 | TX30$3.99$3.3910+ In-Stock
9250330092000OIL GUARD GROMMET 25X31 '98 | '98$3.99$3.39Not Shipping
9950330099201

(replaces part #
50330099200)

GASKET SET | 07$326.03$277.13Usually ships in 7-10 business days
