2012 KTM 250 XCF-W Handlebar, Controls OEM Parts Diagram

Submodel 250 XCFW Chassis - 2012

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Handlebar, Controls

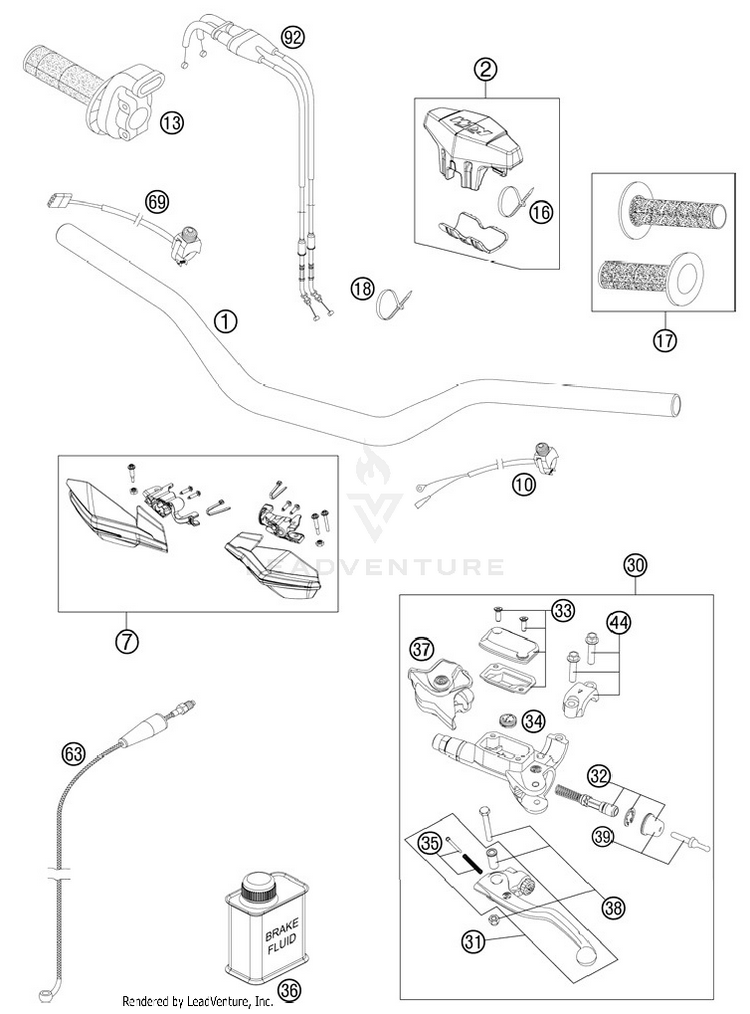

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17800200100017HANDLEBAR D=28MM$204.04$173.439 In-Stock
277202002144BAR PAD CPL.$26.99$26.9910+ In-Stock
77810207900004HAND GUARD CPL. ORANGE | (As required)$44.99$38.78Not Shipping
1050311089200SHORT CIRCUIT BUTTON 02 | 02$44.21$37.5810+ In-Stock
1378102010100

(replaces part #
77002010100)

THROTTLE GRIP CPL. | 09$52.46$44.5910+ In-Stock
1644011076305CABLE TIE 300/4,8MM BLACK | (As required)$2.99$2.5410+ In-Stock
1778102021000

(replaces part #
54802021200)

GRIP SET | 09$26.72$22.7110+ In-Stock
1844011076200CABLE TIE 200/3,6MM BLACK | (As required)$1.99$1.8810+ In-Stock
1844011076140CABLE TIE 140/2,5MM BLACK | (As required)$1.99$1.6910+ In-Stock
3054802030144

(replaces part #
54802030044)

MASTER CYLINDER CPL. | 06$283.02$240.5710+ In-Stock
3154802031000CLUTCH LEVER CPL. BREMBO 06$45.99$39.0910+ In-Stock
3254802032000REP. KIT PISTON 06 | 06$58.73$49.9210+ In-Stock
3354802003000COVER HYD. CLUTCH CPL.$39.37$33.4610+ In-Stock
3454802051000VALVE$22.54$19.1610+ In-Stock
3554802052000BOLT KPL.$22.99$19.5410+ In-Stock
3600062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
3754802037000PROTECTION CAP 06 | 06$24.63$20.9410+ In-Stock
3854802038100LEVER SCREW CPL. 06 | 06$29.99$25.4910+ In-Stock
3954802046000PUSH ROD CPL.$16.99$15.0910+ In-Stock
4454802005100CLAMP CPL. 06 | 06$30.35$25.8010+ In-Stock
6354832063000CLUTCH PIPE 06 | 06$118.02$100.3210+ In-Stock
6978111074000

(replaces part #
59411074000)

STARTER BUTTON GREY 13 | 04$50.48$42.9110+ In-Stock
9277002091000THROTTLE CABLE 250 SXF 2005 | 2005$88.43$75.1710+ In-Stock
