2012 KTM 500 EXC Crankshaft, Piston OEM Parts Diagram

Submodel 500 EXC Engine - 2012

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Crankshaft, Piston

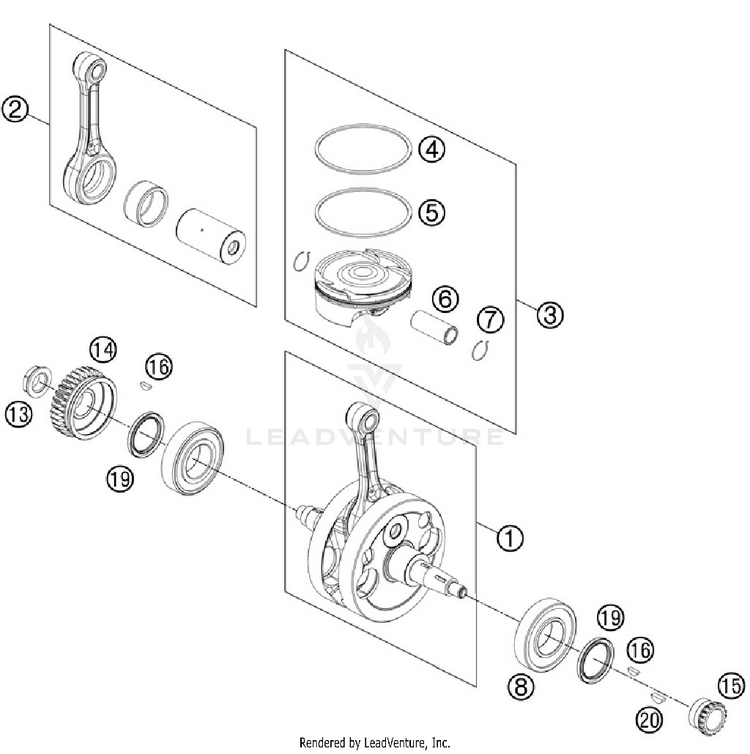

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
178730218000

(replaces part #
78730118000)

CRANKSHAFT CPL.$1,227.81$1,043.64Usually ships in 7-10 business days
278730015044CON. ROD. REP. KIT$528.98$449.63Usually ships in 7-10 business days
379630007000 II

(replaces part #
78730007000 II)

PISTON II CPL.$475.52$404.19Usually ships in 7-10 business days
379630007000 I

(replaces part #
78730007000 I)

PISTON I CPL.$475.52$404.19Usually ships in 7-10 business days
478130030000COMPRESSION RING$47.62$40.48Not Shipping
578130032100

(replaces part #
78130032000)

PISTONRING$48.06$40.852 In-Stock
678130033000PISTON PIN$81.61$69.37Usually ships in 7-10 business days
777330074000CIRCLIP$15.39$13.089 In-Stock
80625062071BALL BEARING 6207 TM-SX07E 39$62.14$52.8210+ In-Stock
1378030029100

(replaces part #
78030029200)

NUT PRIMARY WHEEL$11.87$10.0910+ In-Stock
1478132000032PRIMARY GEAR$105.39$89.58Not Shipping
1578036014300

(replaces part #
78036014200)

Timing gear$47.84$40.6610+ In-Stock
160888030037WOODRUFF KEY DIN6888-3X3,7$2.99$2.5410+ In-Stock
190760354774SHAFT SEAL RING 35X47X7 VITON$13.96$11.8710+ In-Stock
200888030050WOODRUFF KEY DIN6888-3X5X13$2.99$2.5410+ In-Stock
