2012 KTM 500 EXC Fuel Pump OEM Parts Diagram

Submodel 500 EXC Chassis - 2012

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Fuel Pump

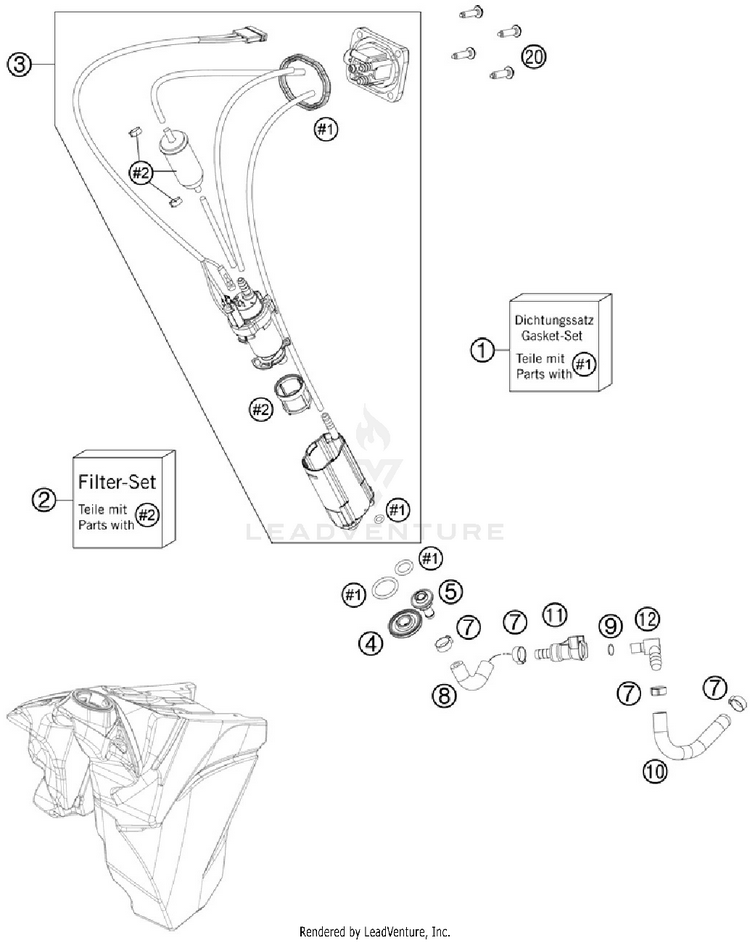

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
178107089100

(replaces part #
78107089000)

GASKET KIT$84.47$71.8010+ In-Stock
281207090200

(replaces part #
81207090000)

Fuel pump filter kit$89.75$76.2910+ In-Stock
378107088600

(replaces part #
78107088000)

Fuel pump$499.72$424.7610+ In-Stock
478107088014NUT F. FUEL PUMP M12$11.76$10.0010+ In-Stock
578107088017FUEL CONNECTOR M8$14.95$12.7110+ In-Stock
700050157706VARIABLE ONE-EAR CLAMP 15,7MM$6.15$5.2310+ In-Stock
877407116000FUEL HOSE TANK$18.80$15.9810+ In-Stock
958507012000O-RING VITON F. PLUG CPC 05 | 05$4.99$4.2410+ In-Stock
1077407016000FUEL HOSE PREFORMED THR.BODY$24.63$20.9410+ In-Stock
115850701050030CLUTCH CPC BLACK 05 | 05$65.77$55.9010+ In-Stock
127720701000030PLUG CPC$43.55$37.0210+ In-Stock
200017060255

(replaces part #
0017060253)

EJOT PT SCREW K60X25-Z SW6$3.99$3.3910+ In-Stock
