2012 KTM 690 ENDURO Hand Brake Cylinder OEM Parts Diagram

Submodel 690 Enduro Chassis - 2012

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Hand Brake Cylinder

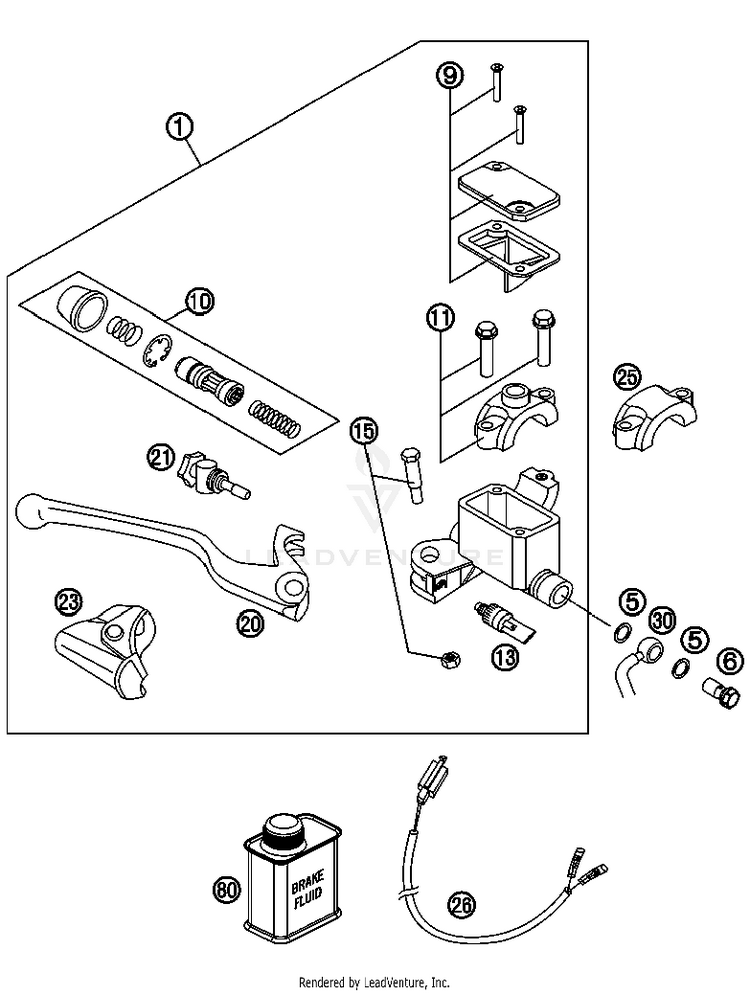

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
163013001000HAND BRAKE CYLINDER 06 | 06$239.35$203.451 In-Stock
50603100141sealing ring DIN 7603 10x14x1$2.99$2.5410+ In-Stock
654813020100banjo bolt M10x1x19 black$11.65$9.9010+ In-Stock
963013003000HAND BRAKE CYL. COVER CPL. 06 | 06$25.18$21.40Usually ships in 7-10 business days
1050313008100REP.SET PISTON EXC 2000 | 2000$33.98$28.883 In-Stock
1163013005000CLAMP F. MIRROR CPL. 06 | 06$34.86$29.63Usually ships in 7-10 business days
1363011050000BRAKE LIGHT SWITCH FRONT 06 | 06$27.71$23.552 In-Stock
1550313006100LEVER SCREW CPL. 2001 | 2001$14.84$12.6110+ In-Stock
2050213020000HAND BRAKE LEVER LOOSE BREM'94$29.47$25.0510+ In-Stock
2150213021000ADJUSTING SCREW CPL.$23.97$20.378 In-Stock
2350213023000PROTECTION CAP BREMBO'94 | 94$26.94$22.904 In-Stock
2563013005100CLAMP 06 | AS REQUIRED, 06$14.27$12.13Usually ships in 7-10 business days
2663011050050CABLE F. BRAKELIGHT SWITCH FR.$6.59$5.602 In-Stock
3076513012000BRAKE HOSE FRONT 1265MM$116.99$99.44Usually ships in 7-10 business days
8000062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
