2012 KTM 690 ENDURO Pro Lever Linking OEM Parts Diagram

Submodel 690 Enduro Chassis - 2012

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Pro Lever Linking

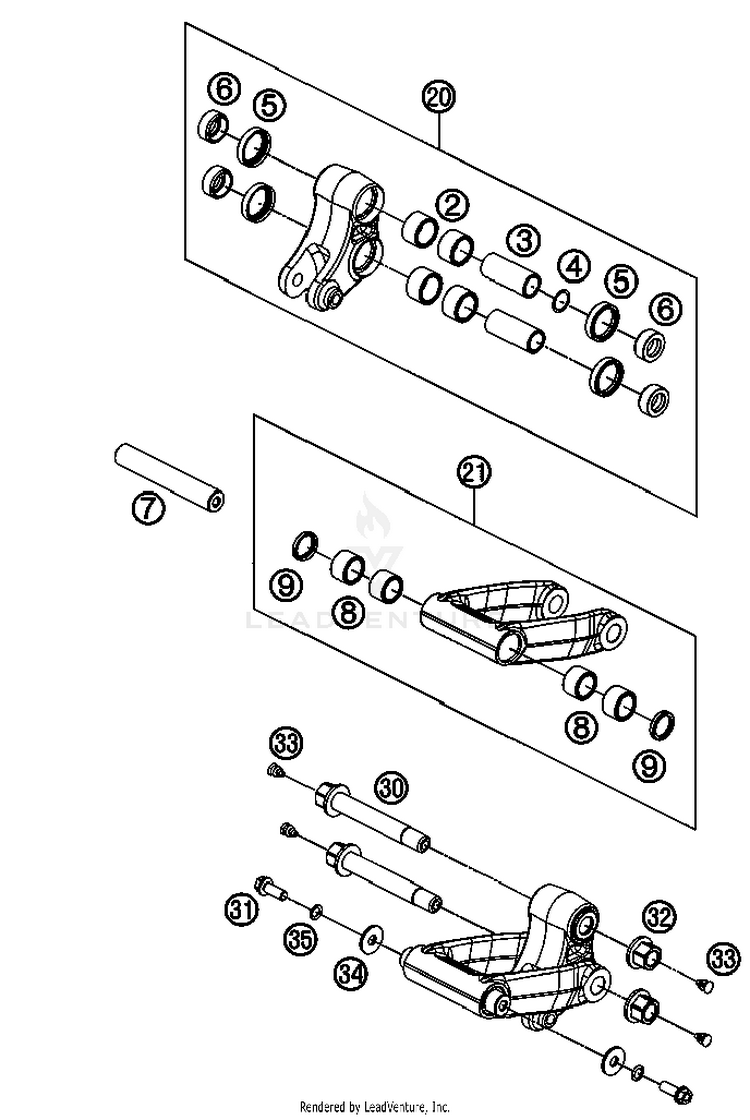

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
254603097000NEEDLE BUSH HK 2016$17.70$15.0410+ In-Stock
354603081000BUSHING SLEEVE 15 X 20 X 48$29.14$24.7710+ In-Stock
454603090020STEEL WASHER 15,2X19X0,2 | AS REQUIRED$2.99$2.5410+ In-Stock
454603090030STEEL WASHER 15,2X19X0,3 | AS REQUIRED$2.99$2.547 In-Stock
454603090010STEEL WASHER 15,2X19X0,1 | AS REQUIRED$3.99$3.3910+ In-Stock
50760253270radial shaft seal 25x32x7$7.80$6.6310+ In-Stock
676504089000BUCKET FOR SHAFT SEAL RING$7.47$6.3510+ In-Stock
776504084100

(replaces part #
76504084000)

Pin for pull rod bearing$76.33$64.88Usually ships in 7-10 business days
856503195100NEEDLE BEARING HK 1816$16.38$13.9210+ In-Stock
90760182442SHAFT SEAL RING 18X24X4$6.81$5.7910+ In-Stock
207650408104401CANTILEVER CPL. 07 | 07$240.01$204.01Not Shipping
217650408304401PULL ROD CPL. 08 | 08$165.47$140.65Not Shipping
3076504082044BOLT CPL. M14X1,5$35.30$30.00Usually ships in 7-10 business days
310025080166SHH collar screw M8x16 TX40 SL | TX40$3.99$3.3910+ In-Stock
3254603015000SELF LOCKING NUT M14X1,5 WS=19 | WS=19$6.48$5.5110+ In-Stock
3354403135000PLASTIC CAP SFL10$2.99$2.5410+ In-Stock
340021080003WASHER DIN9021-A 8,4$1.99$1.6910+ In-Stock
3536003014000LOCK WASHER 8MM$2.99$2.5410+ In-Stock
