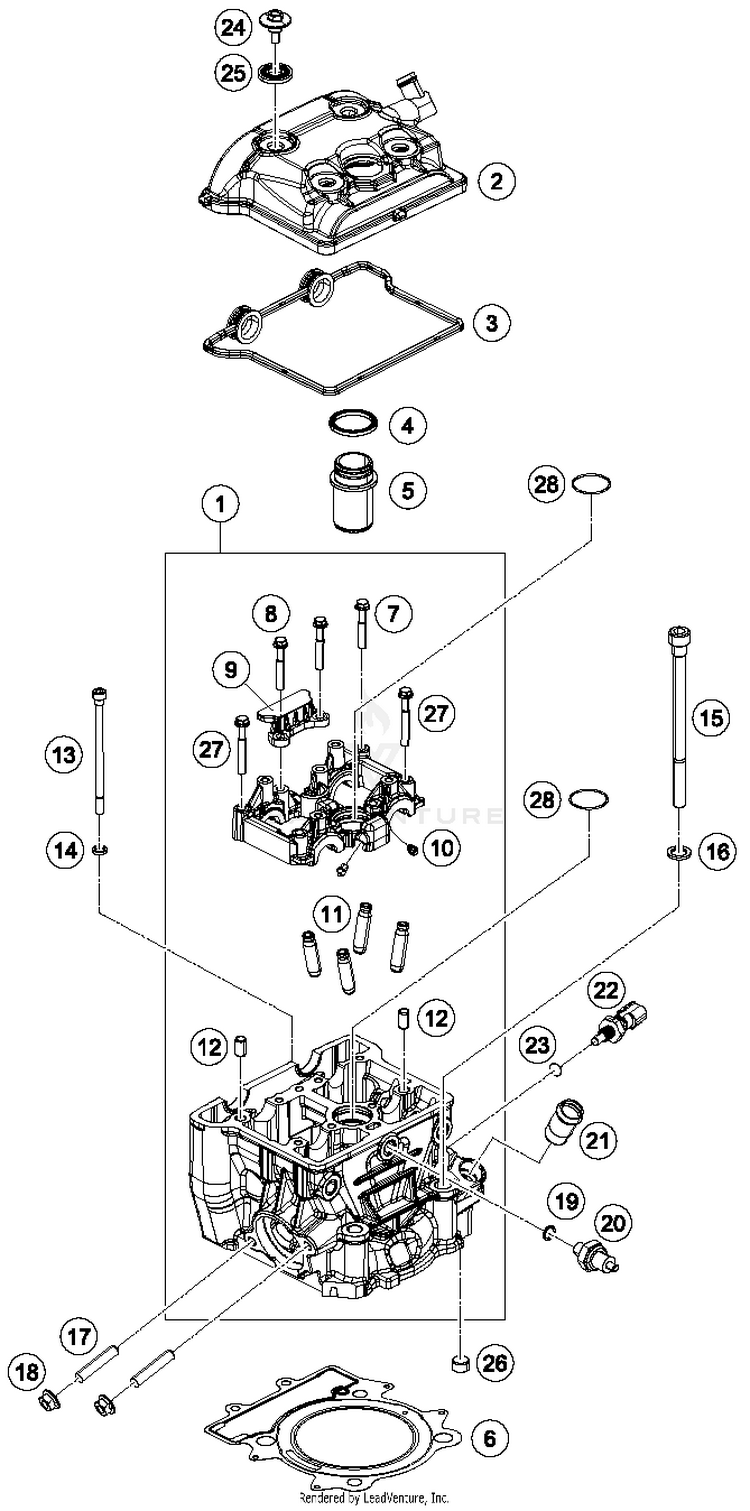

2015 KTM RC 390 Cylinder Head OEM Parts Diagram

Submodel RC 390 WHITE Engine - 2015

Shop Aftermarket Parts

Cylinder Head

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193836020033

(replaces part #
90236020033)

Head Cylinder with Camholder$553.47$470.45Usually ships in 7-10 business days
290236052000VALVE COVER CPL.$51.69$43.94Usually ships in 7-10 business days
390236053000GASKET VALVE COVER$32.21$27.38Usually ships in 7-10 business days
490236054000GASKET SPARK PLUG SHAFT$3.99$3.3910+ In-Stock
590236074000SPARK PLUG SHAFT$21.59$18.35Usually ships in 7-10 business days
693830036000

(replaces part #
90230036000)

Gasket Cylinder Head$43.65$37.10Usually ships in 7-10 business days
7J025060359

(replaces part #
J025060356)

Hexagon screw M6X35$1.99$1.796 In-Stock
8J025060401HH COLLAR SCREW M6X40$1.99$1.79Usually ships in 7-10 business days
990236018000CHAIN GUIDE TOP$4.99$4.49Usually ships in 7-10 business days
1090130064000OIL JET$7.14$6.43Usually ships in 7-10 business days
1190236025100

(replaces part #
90236025000)

Valve guide$3.99$3.59Usually ships in 7-10 business days
1290130024000PIN DOWEL 8X6,4X14MM$1.99$1.79Usually ships in 7-10 business days
13J912061023SOCKET HEAD SCREW M6X102$4.99$4.49Usually ships in 7-10 business days
14J125070003WASHER 7X11X2$1.99$1.79Usually ships in 7-10 business days
15J912101449SOCKET HEAD SCREW M10X144$7.84$7.06Usually ships in 7-10 business days
16J125110003WASHER 11,2X18X2$1.99$1.79Usually ships in 7-10 business days
1790136020001STUD M8$2.99$2.69Usually ships in 7-10 business days
1890136038000FLANGED NUT M8 H7,5 WS12$1.99$1.79Usually ships in 7-10 business days
1990138091001O-RING$2.99$2.69Usually ships in 7-10 business days
2090138091000OIL PRESSURE SENSOR$19.74$16.786 In-Stock
2190235019000PIPE COOLANT$3.99$3.59Usually ships in 7-10 business days
2290135047000TEMPERATURE SENSOR$27.59$23.45Usually ships in 7-10 business days
2390135047001O-RING$2.41$2.17Usually ships in 7-10 business days
2490136052020VALVE COVER SCREW$3.99$3.59Usually ships in 7-10 business days
2590136052010DECOUPLING ELEMENT$3.99$3.59Usually ships in 7-10 business days
2690236024000PLUG$2.99$2.69Usually ships in 7-10 business days
27J025060453HH COLLAR SCREW M6X45$1.99$1.79Usually ships in 7-10 business days
28J770029819O-RING 29,8X1,9$2.99$2.69Usually ships in 7-10 business days
