2016 KTM 150 SX Exhaust System OEM Parts Diagram

Submodel 150 SX Chassis - 2016

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Exhaust System

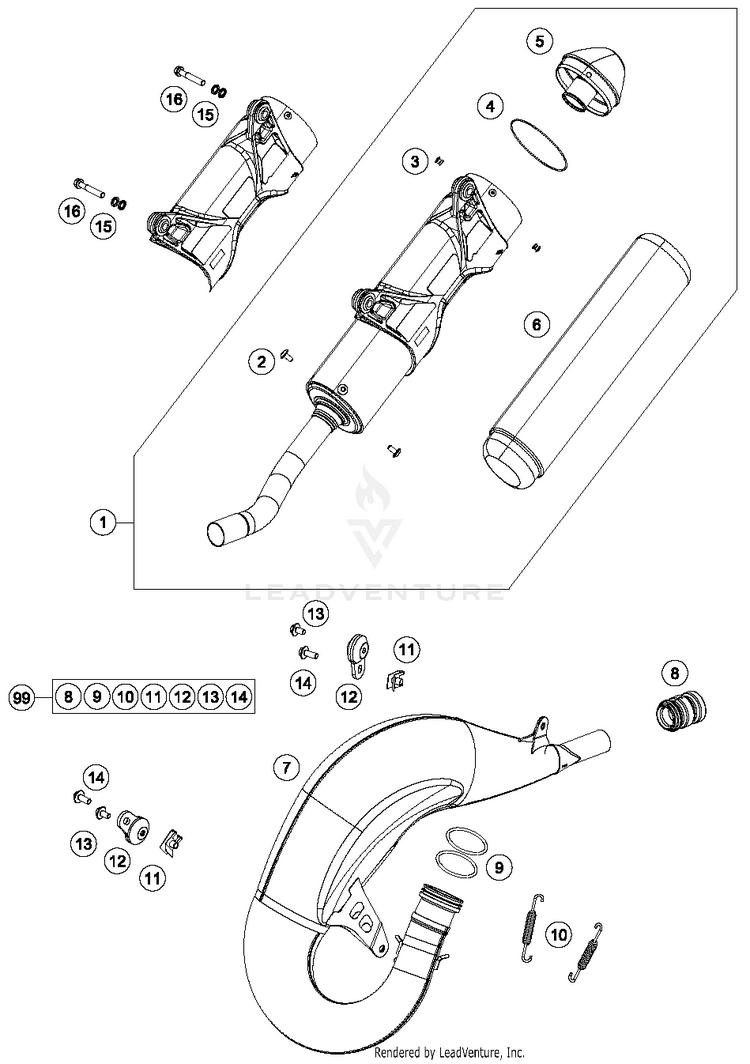

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150405079000SILENCER$430.64$366.04Usually ships in 7-10 business days
278105081010SCREW TORX M5X10$2.99$2.5410+ In-Stock
30011480800DUMMY RIVET 4,8X 8 NIRO$3.99$3.3910+ In-Stock
40770740015O-RING 74,00X1,50 FKM 75SH$4.99$4.2410+ In-Stock
550305083260END CAP CPL.$103.72$88.16Usually ships in 7-10 business days
650405078220ROCK WOOL 220G$60.49$51.42Usually ships in 7-10 business days
750405007100EXHAUST PIPE$875.04$743.78Usually ships in 7-10 business days
854605057000RUBBER SLEEVE D=21MM/23MM '93 | '93$24.30$20.6610+ In-Stock
90770440030O-RING 44,00X3,00 VITON$4.99$4.2410+ In-Stock
10A46005016000

(replaces part #
50305016000)

Tension spring L=65mm$5.38$4.5710+ In-Stock
1154603048100clip nut M6$4.99$4.2410+ In-Stock
1250305012000SWINGELEMENT FOR EXHAUST PIPE$23.42$19.9110+ In-Stock
130024060106HH COLLAR SCREW M6X10 TX30 | TX30$3.99$3.3910+ In-Stock
140024060156HH collar screw M6x15 TX30 | TX30$3.99$3.3910+ In-Stock
1550233041000PAIR OF WASHERS M 6 NORDLOCK$4.99$4.2410+ In-Stock
160025060356HH collar screw M6x35 TX30 | TX30$3.99$3.3910+ In-Stock
9900050000811

(replaces part #
00050000810)

EXHAUST HARDWARE KIT 11-14 | As Required$129.68$110.2310+ In-Stock
