2016 KTM 150 SX Shock Absorber Disassembled OEM Parts Diagram

Submodel 150 SX Chassis - 2016

Shop Aftermarket Parts

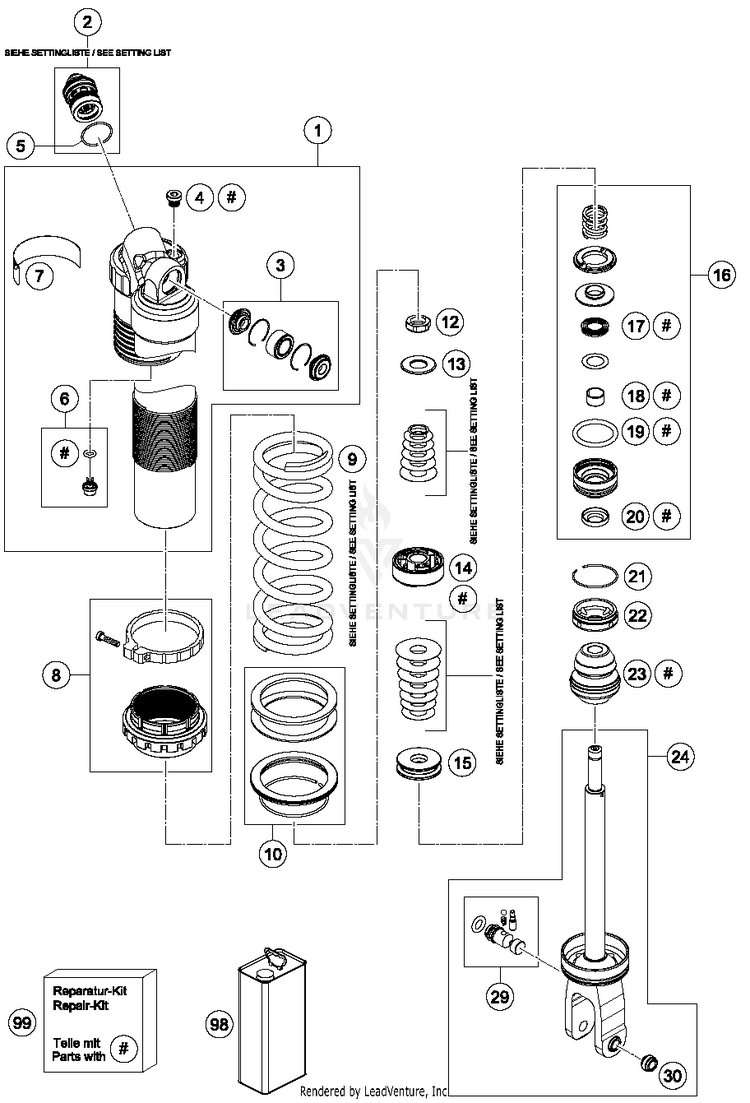

Shock Absorber Disassembled

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150181040S1MONOSOCK UPPER PART CPL.$660.59$561.50Usually ships in 7-10 business days
250181101S1Compression cpl. | As Required$122.73$104.32Usually ships in 7-10 business days
250181101S2DCC-COMPR.DAMP.CONTROL LINK 16 | As Required$122.73$104.32Usually ships in 7-10 business days
250181101S3DCC-COMPR.DAMP.CONTROL LINK 16 | As Required$141.78$120.51Usually ships in 7-10 business days
3R12025Ball joint bearing kit 12mm$44.49$37.8210+ In-Stock
450180095HS cylinder-head screw R1/8 l8$2.85$2.4210+ In-Stock
550180218O-ring 25x1,5 Viton70$2.41$2.0510+ In-Stock
636120151ST

(replaces part #
36120151S)

PLUG SCREW M5X6 CPL.$4.83$4.1110+ In-Stock
752000128Sticker WP warning$2.41$2.17Usually ships in 7-10 business days
850180991SSpring retainer M58,1x2 plastic cpl.$41.24$35.0510+ In-Stock
991210100S

(replaces part #
91210107S)

SPRING 260 45 N/MM | As Required$164.99$140.2410+ In-Stock
991210124S

(replaces part #
91210106S)

SPRING 260 42 N/MM | As Required$164.99$140.246 In-Stock
991210123S

(replaces part #
91210112S)

SPRING 260 39 N/MM | As Required$164.99$140.248 In-Stock
1050180824SSPRING PLATE SET$44.98$38.2310+ In-Stock
1250181207

(replaces part #
50181112)

Locking nut M12x1 h9 WAF19$9.23$7.8510+ In-Stock
1350181092Rebound disc 12x34x2 h0$25.07$21.3110+ In-Stock
1450181333S

(replaces part #
50181030E)

Assembly Piston ICHU Sparepart$60.38$51.3210+ In-Stock
1550181091Rebound disc 12x43x12,5 h8$30.24$25.70Usually ships in 7-10 business days
1650180603S7

(replaces part #
50180603SA)

DichtungstrSger 50x28 cpl.$74.24$63.1010+ In-Stock
1750180605ST

(replaces part #
50180605S)

Seal ring cpl. 18x30x5$25.95$22.0610+ In-Stock
1846180119Guide bushing 18x20x12$8.99$7.6410+ In-Stock
1950180103O-ring 41x5 NBR70$1.20$1.0210+ In-Stock
2050180606Dirt scarper NOK 18mm black$9.23$7.8510+ In-Stock
2150180126Round-wire snap ring 53x1,75-$1.3010+ In-Stock
2250180626Cover 50x6 h16$53.89$45.81Usually ships in 7-10 business days
2350181100Rubber pad 18x58x46 black$22.76$19.3510+ In-Stock
2450181032S1MONOSHOCK BOTTOM PART CPL.$348.47$296.20Usually ships in 7-10 business days
2950181094SADJUSTING SCREW M8X0,5 CPL.$17.37$14.766 In-Stock
3046811205Bush M10x12/15/13x9,5$7.91$6.7210+ In-Stock
9850180751S1SHOCK ABSORBER FLUID 5 LT$175.99$149.596 In-Stock
99R12029T

(replaces part #
R12029)

REP. KIT 5018 LINK 2016 US/HQV | As Required$108.89$92.5610+ In-Stock
