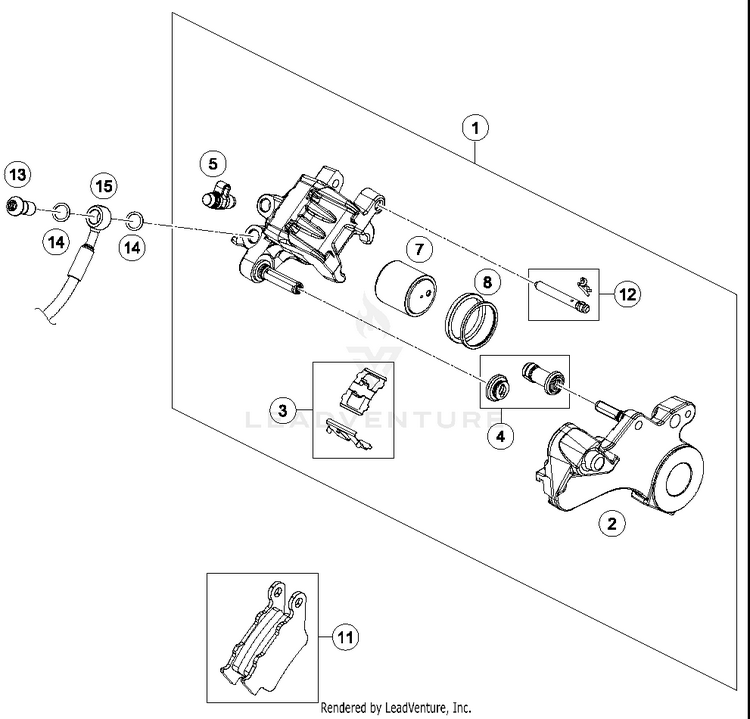

Brake Caliper Rear

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17601308010101

(replaces part #
7601308000101)

Rear brake caliper without lining$341.98$290.681 In-Stock
27601317500001BRAKE CALIPER BRACKET REAR$178.30$151.56Usually ships in 7-10 business days
354613311200RETAINING SPRING SET$18.36$15.6110+ In-Stock
454613218100

(replaces part #
54613218000)

CUP SET SHORT$27.71$23.5510+ In-Stock
561013020200BLEEDER SCREW WITH CAP$9.89$8.411 In-Stock
750313083000BRAKE PISTON 32MM$37.61$31.975 In-Stock
850313081000REPAIR KIT SEALING RINGS 32MM$18.80$15.984 In-Stock
1175013090000BRAKE PAD SET REAR SBS-S-40GF$54.33$46.1810+ In-Stock
1261013082000BOLT SET 05$22.21$18.883 In-Stock
1362113020100banjo bolt M10x1x19.5$10.33$8.787 In-Stock
140603100141sealing ring DIN 7603 10x14x1$2.99$2.5410+ In-Stock
1576542001000BRAKE HOSE REAR CALIPER$177.20$150.62Usually ships in 7-10 business days
