2016 KTM 690 ENDURO Monoshock OEM Parts Diagram

Submodel 690 ENDURO R Engine - 2016

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Monoshock

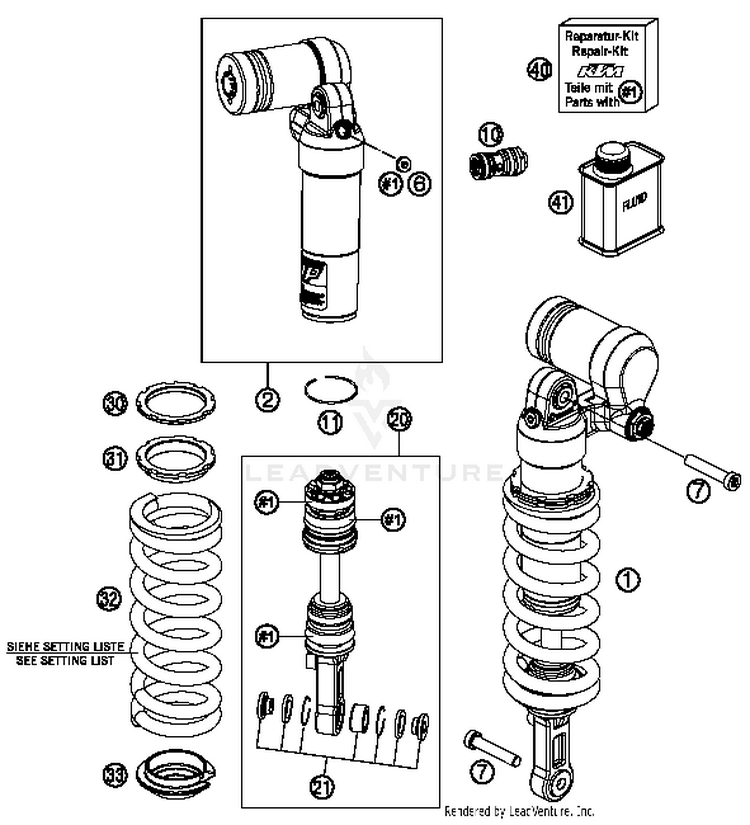

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
115187L1001MONOSHOCK ENDURO-R 2012 | 2012$1,905.11$1,619.34Usually ships in 7-10 business days
246180776S1SHOCK ABS. UPPER CPL. 09$395.00$335.75Usually ships in 7-10 business days
650180095HS cylinder-head screw R1/8 l8$2.85$2.4210+ In-Stock
776504016000CYL. SCREW M10X1,25 L=53$4.99$4.49Usually ships in 7-10 business days
1046180533S1Compression cpl.$478.05$406.34Usually ships in 7-10 business days
1146810010Round-wire snap ring 49x1,8$3.62$3.0810+ In-Stock
2046180654S14MONOSH. LOWER PART CPL. ENDURO$1,033.88$878.80Usually ships in 7-10 business days
21R15006REPAIR KIT BEARINGS 07$121.26$103.0710+ In-Stock
3046180766Lock nut shock M54x1,5$31.56$26.83Usually ships in 7-10 business days
3146180855Adjustment nut shock M54x1,5$54.11$45.993 In-Stock
3291110004SSPRING 220MM 80N/MM (61) | As Required$177.53$150.90Usually ships in 7-10 business days
3291110005SSPRING 220MM 85N/MM (61) | As Required$183.03$155.58Usually ships in 7-10 business days
3346181299

(replaces part #
46180396)

Spring retainer 28x73x15 black$72.26$61.42Usually ships in 7-10 business days
40R15004T

(replaces part #
R15004)

REPAIR KIT GASKET 05$69.29$58.903 In-Stock
4150180751S1SHOCK ABSORBER FLUID 5 LT$175.99$149.596 In-Stock
