2017 KTM 150 SX Waterpump OEM Parts Diagram

Submodel 150 SX ENGINE - 2017

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Waterpump

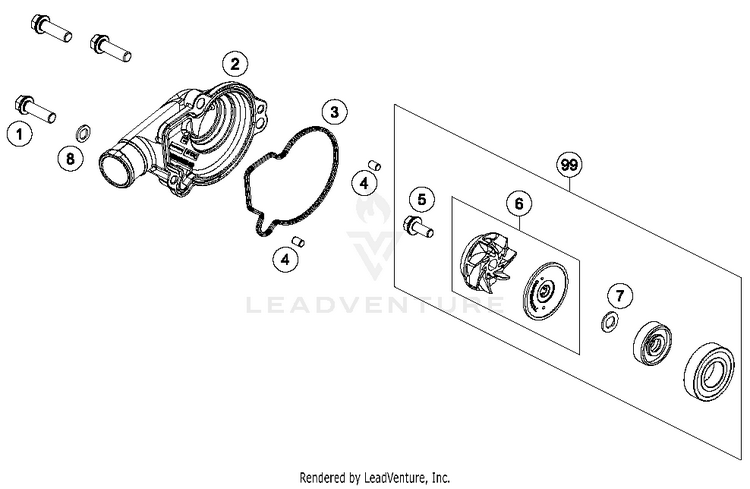

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
250435052000WATER PUMP COVER$21.77$18.507 In-Stock
350435053000GASKET WATER PUMP COVER$10.33$8.7810+ In-Stock
40402040600NEEDLE ROOLER DIN5402 NRB 4X6$6.15$5.237 In-Stock
50014050123HH COLLAR SCREW M 5X12 WS=6$2.99$2.5410+ In-Stock
679235055044WATER PUMP WHEEL CPL.$18.14$15.4210+ In-Stock
750435049000PREFORMED WASHER$4.99$4.2410+ In-Stock
80603061001CU-SEAL RING DIN7603-6X10X1$2.99$2.5410+ In-Stock
9950435055015WATER PUMP REP. KIT | As Required$48.39$41.1310+ In-Stock
