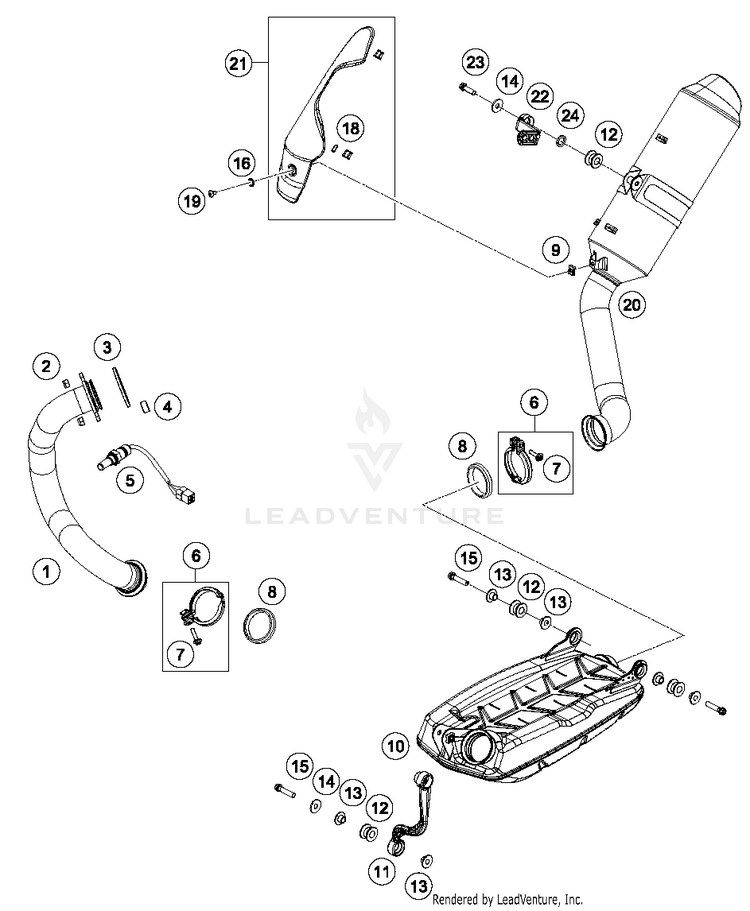

2017 KTM 690 Duke Exhaust System OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	76005007100	EXHAUST MANIFOLD	$521.72	$443.46	Usually ships in 7-10 business days
2	51010086100	self-locking nut M8 Cu	$3.99	$3.39	10+ In-Stock
3	61005005000	EXHAUST GASKET 05	$11.76	$10.00	10+ In-Stock
4	61005009000	SPACER BUSH. 8,5X15X7,5 05	$6.15	$5.23	8 In-Stock
5	75041090100	LAMBDA SENSOR	$201.40	$171.19	Usually ships in 7-10 business days
6	69005050000	CLAMP CPL.	$28.92	$24.58	10+ In-Stock
7	0024060256	HH COLLAR SCREW M6X25 TX30 \| TX30	$3.99	$3.39	10+ In-Stock
8	69005005005	MANIFOLD GASKET	$19.79	$16.82	10+ In-Stock
9	69008021080	clip nut M5	$3.99	$3.39	10+ In-Stock
10	76005050200	PRE-SILENCER	$1,519.86	$1,291.88	Usually ships in 7-10 business days
11	7560501410001	BRACKET F. SILENCER	$61.92	$52.63	Usually ships in 7-10 business days
12	54305068100	damp. component silicone grey	$9.78	$8.31	10+ In-Stock
13	58405050065	collar bushing 8.5x12x23.5x10	$6.15	$5.23	10+ In-Stock
14	0021080003	WASHER DIN9021-A 8,4	$1.99	$1.69	10+ In-Stock
15	0025080356S	HH COLLAR SCREW M8X35 TX40 \| TX40	$3.99	$3.39	10+ In-Stock
16	0797050000	TOOTH LOCK WASHER DIN6797-J	$2.99	$2.54	10+ In-Stock
18	61005091000	DAMP. COMPON. SILICONE GREY 05	$9.78	$8.80	4 In-Stock
19	78105081010	SCREW TORX M5X10	$2.99	$2.54	10+ In-Stock
20	76005182000	SILENCER USA	$765.26	$650.47	Usually ships in 7-10 business days
21	76005011000	HEAT SHIELD CPL.	$132.76	$112.85	Usually ships in 7-10 business days
22	7600508400001S	BRACKET F. SILENCER	$66.54	$56.56	Usually ships in 7-10 business days
23	0035080256	AH-COLLAR SCREW M8X25 ISA45	$4.99	$4.24	3 In-Stock
24	76005085000	SHIM 12X8.5X1.5 MM	$6.15	$5.54	Usually ships in 7-10 business days
