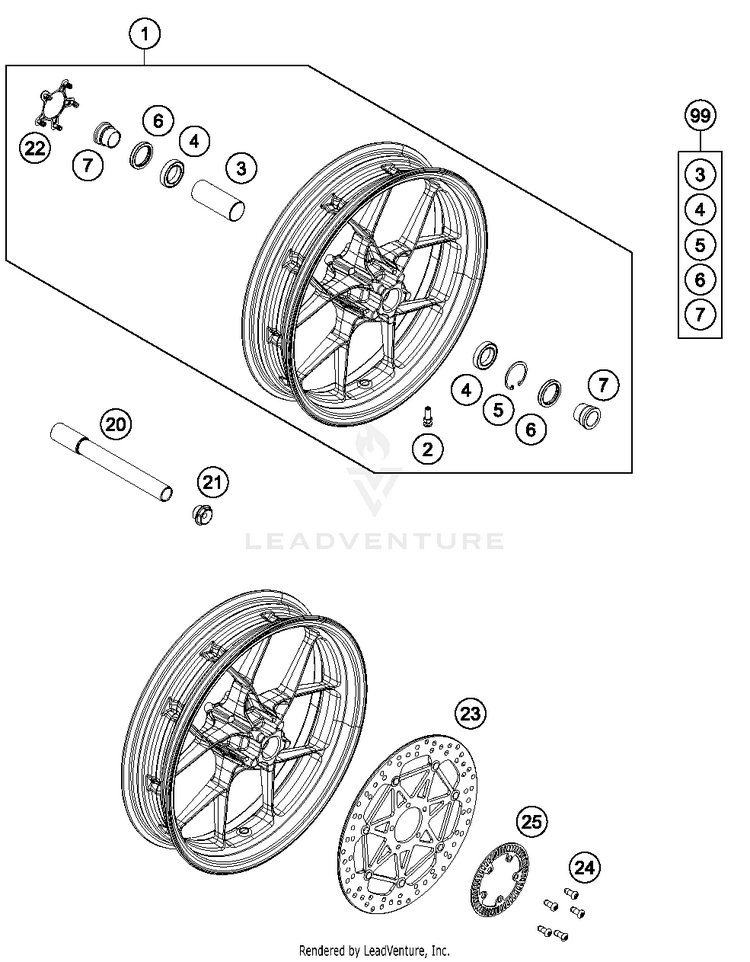

2017 KTM 690 Duke Front Wheel OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	76009001244C1 (replaces part # 7600900114430)	Front wheel cmpl. 3.5x17"" black	$365.19	$310.41	Usually ships in 7-10 business days
2	58709076000	VALVE CPL. BREMBO DUKE 2003 \| 2003	$10.22	$8.69	Usually ships in 7-10 business days
3	61009011000	BEARING SPACER TUBE FRONT 05	$26.83	$22.81	Usually ships in 7-10 business days
4	0625069068	GR.BALL BEAR.6906 DDU2CG23S6NM	$40.80	$34.68	10+ In-Stock
5	0472047175	CIRCLIP DIN0472-47X1,75	$3.99	$3.39	10+ In-Stock
6	0760354771	SHAFT SEAL RING 35X47X7 TC	$10.22	$8.69	10+ In-Stock
7	78009012000	SPACER BUSHING F. FR. WHEEL 08	$35.41	$30.10	10+ In-Stock
20	75009081100 (replaces part # 75009081000)	Wheel spindle, front, D=26ámm	$95.03	$80.78	Usually ships in 7-10 business days
21	54809082200 (replaces part # 54809082000)	Axle bolt M24x1.5 SW=27	$11.54	$9.81	10+ In-Stock
22	76009001010	COVER BRAKE DISC SEAT	$9.56	$8.60	Usually ships in 7-10 business days
23	7600916000033	BRAKE DISC D=320	$394.56	$335.38	Usually ships in 7-10 business days
24	76009062000	SPECIAL SCREW M8X25 SS TX40 \| TX40	$2.99	$2.54	10+ In-Stock
25	76042020000	SENSORGEAR FRONT	$40.69	$34.59	Usually ships in 7-10 business days
99	75609015000	FRONT WHEEL REP. KIT \| As Required	$105.04	$89.28	Usually ships in 7-10 business days
