2017 KTM 690 Duke Handlebar, Controls OEM Parts Diagram

Submodel 690 DUKE WHITE ENGINE - 2017

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

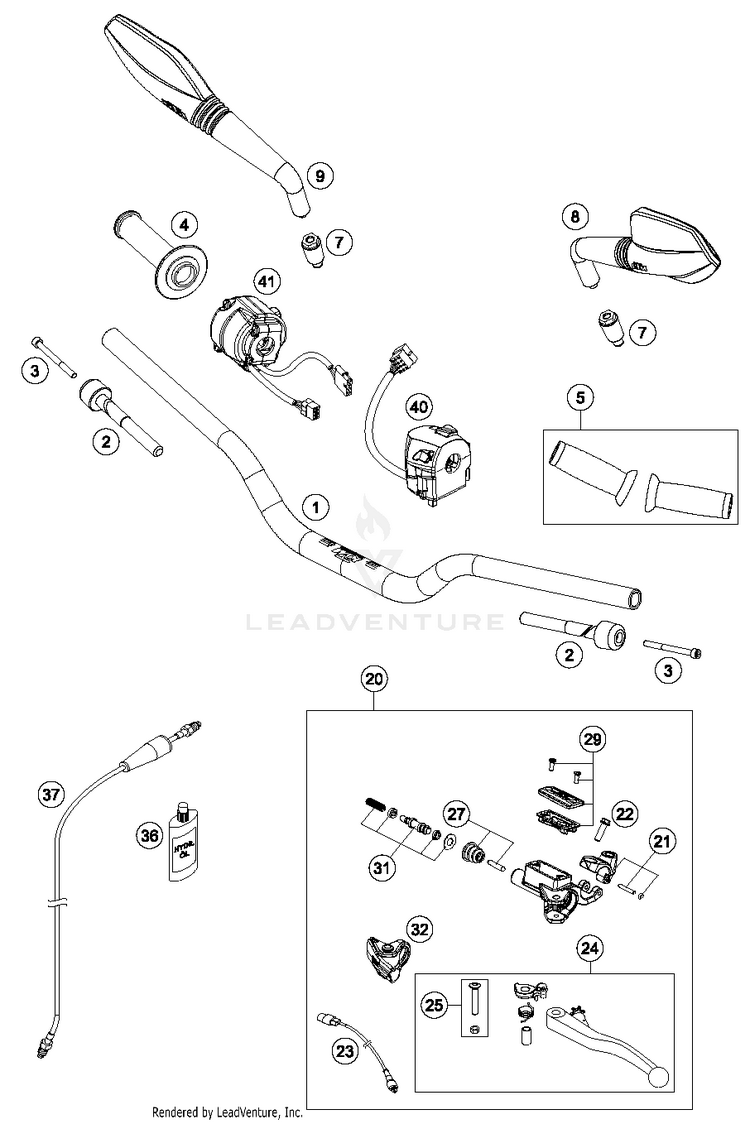

Handlebar, Controls

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
176002001000HANDLEBAR D= 28MM$179.29$152.40Usually ships in 7-10 business days
261002004000handlebar weight$41.79$35.5210+ In-Stock
30912060653SHCS DIN 912 M6x65$2.99$2.5410+ In-Stock
476002010000THROTTLE GRIP$35.19$29.914 In-Stock
576002021000GRIP SET OPEN END$54.44$46.27Usually ships in 7-10 business days
758412040050SUPPORT FOR MIRROR LC4 '98 | '98$23.75$20.1910+ In-Stock
861112040000REVIEW MIRROR L/S 07$57.19$48.615 In-Stock
961112041000REVIEW MIRROR R/S 07$57.19$48.616 In-Stock
2076502030144MASTER CYLINDER DOT CPL. 11MM$647.67$550.52Usually ships in 7-10 business days
2176513005000CLAMP, CYL. PIN, O-RING$81.94$69.6510+ In-Stock
220025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
2383111049000CLUTCH SWITCH ATV$125.28$106.49Usually ships in 7-10 business days
2476502031000CLUTCH LEVER CPL. LONG 13$135.62$115.2810+ In-Stock
2550302038200LEVER SCREW SHORT CPL. 09$26.94$22.9010+ In-Stock
2776502046000PUSH ROD CPL. 13$37.39$31.7810+ In-Stock
2925002033000COVER HYDR. CLUTCH DOT CPL.$39.15$33.2810+ In-Stock
3127002032000REP. KIT PISTON DOT 11MM$148.05$125.849 In-Stock
3276502037000PROTECT.CAP FOR LEVER PERCH 13$43.22$36.7410+ In-Stock
3600062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
37A63432063000

(replaces part #
76032063000)

Coupling line$81.50$69.28Usually ships in 7-10 business days
4076011170100

(replaces part #
76011170000)

Handlebar switch left$159.50$135.58Usually ships in 7-10 business days
4176011073100START-STOP/E-GAS$408.64$347.34Usually ships in 7-10 business days
