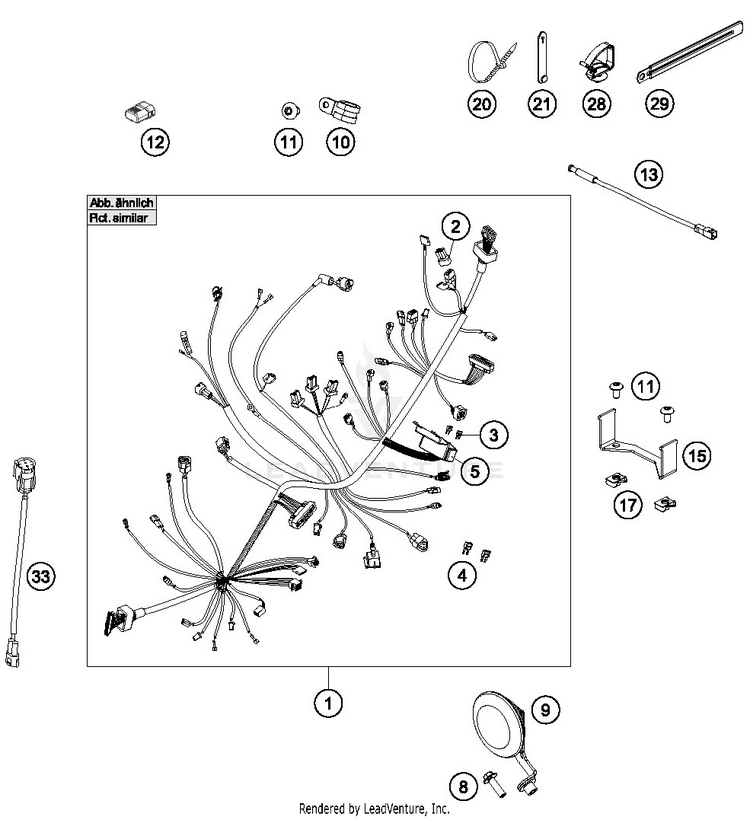

2017 KTM 690 Duke Wiring Harness OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	76011075300	MAIN HARNESS	$985.37	$837.56	Usually ships in 7-10 business days
2	000700000BH	SPARE CONNECTOR BH 6-PINS	$26.06	$22.15	Usually ships in 7-10 business days
3	75011088015	FUSE 15A 07 \| As Required	$4.99	$4.24	10+ In-Stock
3	75011088010	FUSE 10A 07 \| As Required	$4.99	$4.24	10+ In-Stock
4	58011109115	FUSE 15 A \| As Required	$1.99	$1.69	8 In-Stock
4	58011109125	FUSE 25 A \| As Required	$2.99	$2.54	6 In-Stock
5	75011087050	RUBBER CASING FOR FUSE BOX	$13.63	$11.59	1 In-Stock
8	0024060206	HH collar screw M6x20 TX30 \| TX30	$3.99	$3.39	10+ In-Stock
9	76011060100	DC HORN 12V	$24.30	$20.66	Usually ships in 7-10 business days
10	49007439000	CLAMP RSGU 15/12	$6.15	$5.23	5 In-Stock
11	78105081010	SCREW TORX M5X10	$2.99	$2.54	10+ In-Stock
12	000700000HJ01	CAP FOR CONNECTOR 000700000HJ	$4.99	$4.49	Usually ships in 7-10 business days
13	61111018100	TEMPERATURE SENSOR	$37.17	$31.59	4 In-Stock
15	76011057000	BRACKET F. FUSE BOX	$13.63	$11.59	Usually ships in 7-10 business days
17	69008021080	clip nut M5	$3.99	$3.39	10+ In-Stock
20	44011076200	CABLE TIE 200/3,6MM BLACK \| As Required	$1.99	$1.88	10+ In-Stock
21	60011093045	RUBBER CABLE TIE 45MM 03 \| As Required	$3.99	$3.39	10+ In-Stock
28	76011094000	CABLE SUPPORT	$1.04	$0.94	Usually ships in 7-10 business days
29	76011093000	CABLE SUPPORT	$3.99	$3.59	Usually ships in 7-10 business days
33	76011048000	AMBIENT-AIR TEMP. SENSOR CABLE	$7.69	$6.92	Usually ships in 7-10 business days
