2017 KTM 690 ENDURO Brake Caliper Front OEM Parts Diagram

Submodel 690 ENDURO R CHASSIS - 2017

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

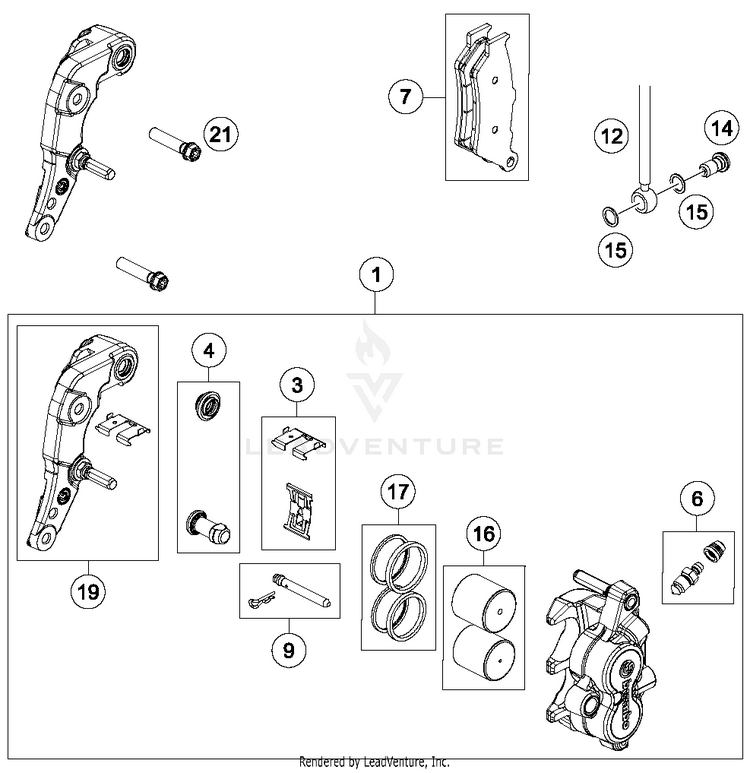

Brake Caliper Front

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
16011301510101

(replaces part #
6011301500101)

BRAKE CALIPER FRONT L/S$333.51$283.48Usually ships in 7-10 business days
360013018000RETAINING PLATE SET FRONT 03$18.14$15.426 In-Stock
454613218100

(replaces part #
54613218000)

CUP SET SHORT$27.71$23.5510+ In-Stock
660013020000BLEEDER SCREW WITH CAP$8.68$7.3810+ In-Stock
760013030000BRAKE PADS TOSHIBA TT 2172 HHA$79.85$67.8710+ In-Stock
960013017000BOLT SET L/S$20.78$17.668 In-Stock
1276542006000BRAKE HOSE FRONT CALIPER$121.32$103.12Usually ships in 7-10 business days
1462113020100banjo bolt M10x1x19.5$10.33$8.787 In-Stock
150603100141sealing ring DIN 7603 10x14x1$2.99$2.5410+ In-Stock
1660013083000BRAKE PISTONS 30/32MM$75.34$64.042 In-Stock
1760013019000REP.KIT SEALING RINGS 30/32MM$25.40$21.5910+ In-Stock
1960113049100BRAKE CALIPER SUPPORT FR. L/S$114.50$97.324 In-Stock
210025080356SHH COLLAR SCREW M8X35 TX40 | TX40$3.99$3.3910+ In-Stock
