2017 KTM 690 ENDURO Front Fork, Triple Clamp OEM Parts Diagram

Submodel 690 ENDURO R CHASSIS - 2017

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Front Fork, Triple Clamp

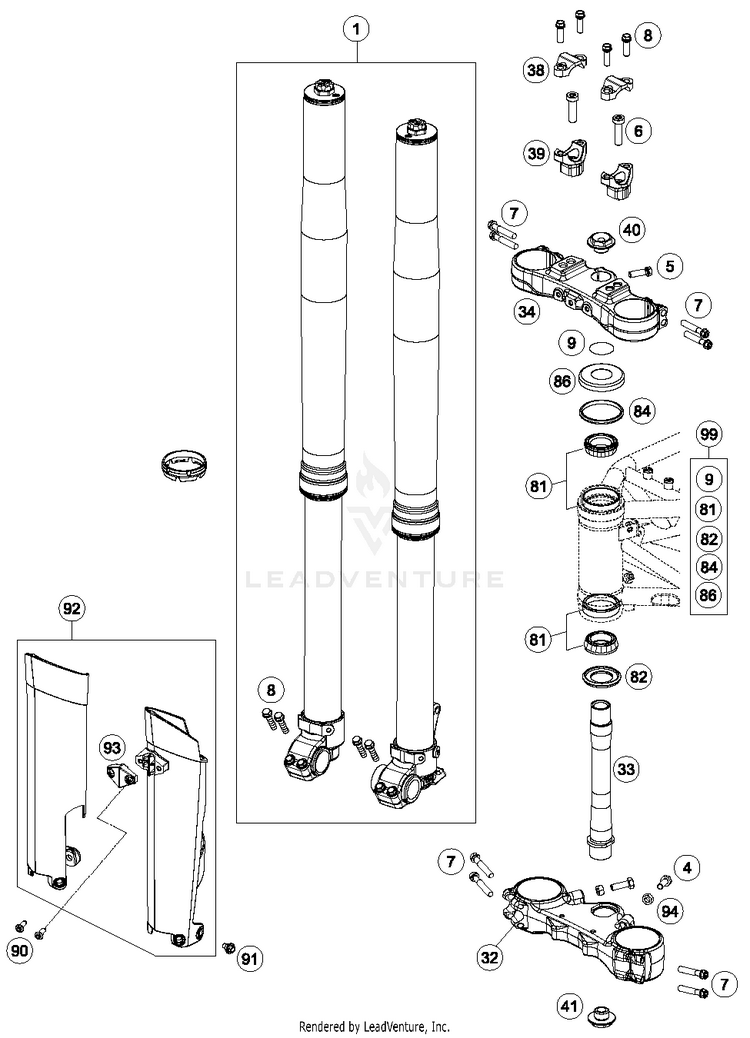

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
114188N1001FRONT FORK 690 ENDURO R 2014 | 2014$2,899.35$2,899.35Usually ships in 7-10 business days
40933080253HH SCREW DIN0933-M 8X25$2.99$2.5410+ In-Stock
50025080306HH collar screw M8x30 | TX40$3.62$3.0810+ In-Stock
60032100356SAH-COLLAR SCREW M10X35 ISA45$4.99$4.2410+ In-Stock
70025080406HH COLLAR SCREW M8X40 TX40 | TX40$4.83$4.1110+ In-Stock
80025080256HH collar screw M8x25 | TX40$2.41$2.0510+ In-Stock
90770025035O-RING 25X3,55 NBR70 05$1.99$1.6910+ In-Stock
327650103103133BOT.TRIPLE CLAMP 60 MM$343.96$292.37Usually ships in 7-10 business days
3376501033200

(replaces part #
76501033000)

Excentric head tube$141.67$120.42Usually ships in 7-10 business days
347650103403133TOP TRIPLE CLAMP 54MM$208.31$177.06Usually ships in 7-10 business days
3877201038000HANDLEBAR CLAMP 28MM$29.47$25.0510+ In-Stock
3959401039042HANDLEB.SUPP. D=28MM H=42MM 05$42.67$36.275 In-Stock
4054801036300

(replaces part #
54801036000)

Steering head screw M20x1.5 SW=27$13.19$11.2110+ In-Stock
4154801036100STE.HEAD SCR. M20X1,5 WS=27 SL$17.26$14.676 In-Stock
8154201081100TAPERED ROLLER BEARING CPL. 06$60.05$51.0410+ In-Stock
8277701084000O-RING SUPPORT W. SEALING LIP$22.76$19.3510+ In-Stock
8454601184000STEARING HEAD GASKET TOP$8.35$7.1010+ In-Stock
8654201086000STEERING HEAD COVER$10.00$8.5010+ In-Stock
900017060206SCREW F. PLASTIC K60X20AL SW6$3.99$3.3910+ In-Stock
9159001092050SPECIAL SCREW M6X12,5 WS=8$2.99$2.5410+ In-Stock
927800109420030FORK PROTECT. L/S+R/S BLACK$36.99$31.896 In-Stock
937800108500030CLAMP F.SPEED.CABLE D=6MM 08$6.15$5.234 In-Stock
940934080003HEXAGON NUT DIN0934-M 8$2.99$2.5410+ In-Stock
9954201081144

(replaces part #
00050000930)

Stearing Head repair kit | 06-15, As Required$104.71$89.0010+ In-Stock
