2018 KTM RC 390 Front Wheel OEM Parts Diagram

Submodel RC 390 ENGINE - 2018

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

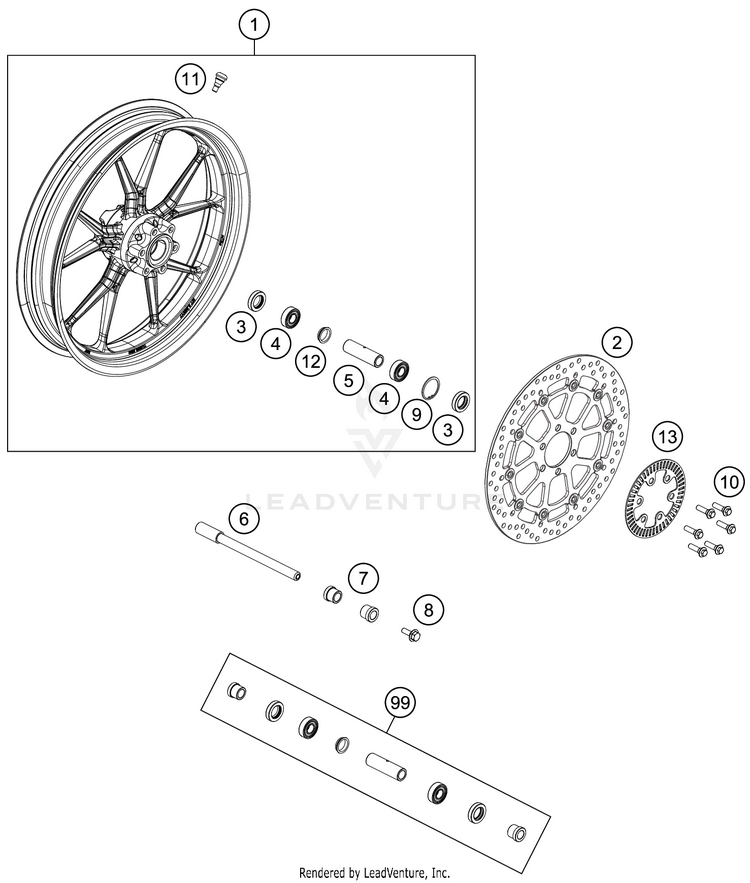

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193009001044EBFront wheel cpl. orange$417.33$354.73Usually ships in 7-10 business days
293309060000Brake disc front 320MM$210.42$178.86Usually ships in 7-10 business days
3J760223508SHAFT SEAL RING 22X35X8$3.99$3.59Usually ships in 7-10 business days
4J625062023BALL BEARING 6202$14.08$11.97Usually ships in 7-10 business days
590109011000Spacer front wheel$18.47$15.70Usually ships in 7-10 business days
693009081000Front axle$24.94$21.20Usually ships in 7-10 business days
790209083000BEARING BUSHING$6.15$5.54Usually ships in 7-10 business days
890109082000flanged bolt M8$4.99$4.49Usually ships in 7-10 business days
9J472042170CIRCLIP$1.99$1.79Usually ships in 7-10 business days
1090110062000SPECIAL SCREW M8X25 SELF LOCK.$3.99$3.3910+ In-Stock
1190109076000VALVE CPL.$8.35$7.52Usually ships in 7-10 business days
1290109011001Fixation bearing spacer tube$1.99$1.79Usually ships in 7-10 business days
1393042020000SENSORRING ABS$6.15$5.232 In-Stock
9990109015000FRONT WHEEL REP. KIT | ON DEMAND$58.07$49.36Usually ships in 7-10 business days
