2018 KTM RC 390 Handlebar, Controls OEM Parts Diagram

Submodel RC 390 ENGINE - 2018

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR, CONTROLS

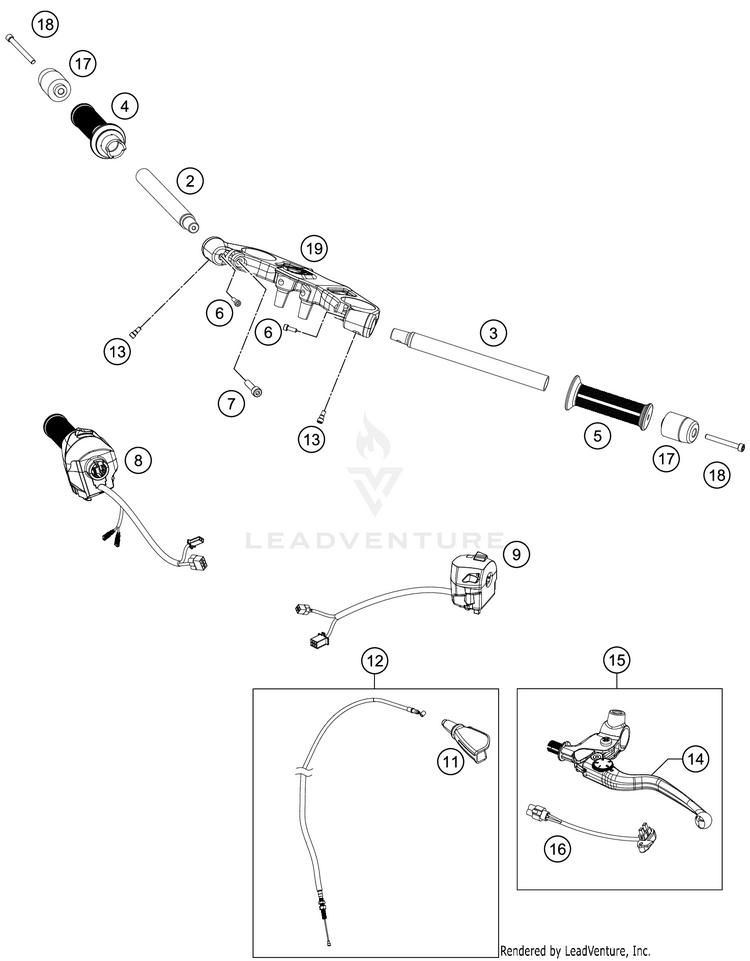

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
293802001100HANDLEBAR R/S$28.63$24.341 In-Stock
393802001000HANDLEBAR L/S$28.63$24.34Usually ships in 7-10 business days
493702010033THROTTLE GRIP$9.00$8.10Usually ships in 7-10 business days
590802039000HAND GRIP L/S$7.04$5.985 In-Stock
690511006100BOLT SOCKET M6X1X14$1.99$1.79Usually ships in 7-10 business days
790501045000AH SCREW M8X1.25X30$1.99$1.79Usually ships in 7-10 business days
893511074000START-EMERGENCY STOP SWITCH$272.92$231.98Usually ships in 7-10 business days
990511070000light switch$62.48$53.11Usually ships in 7-10 business days
1193802016000BOOT CLUTCH LEVER$2.99$2.69Usually ships in 7-10 business days
1290802090000CLUTCH CABLE$19.16$16.29Usually ships in 7-10 business days
1390511006000SPECIAL SCREW M5x0,8X13$2.99$2.69Usually ships in 7-10 business days
1493502031100Clutch lever$18.24$15.5010+ In-Stock
1593502031000CLUTCH LEVER CPL.$70.72$60.11Usually ships in 7-10 business days
1690511049000clutch switch$10.27$8.733 In-Stock
1790202004001HANDLEBAR WEIGHT$8.57$7.2810+ In-Stock
18J912060551BOLT SOCKET M6X55 BLACK$1.99$1.79Usually ships in 7-10 business days
1990501034135Top triple clamp$399.95$339.96Usually ships in 7-10 business days
