2018 KTM RC 390 Transmission I - Main Shaft OEM Parts Diagram

Submodel RC 390 ENGINE - 2018

Shop Aftermarket Parts

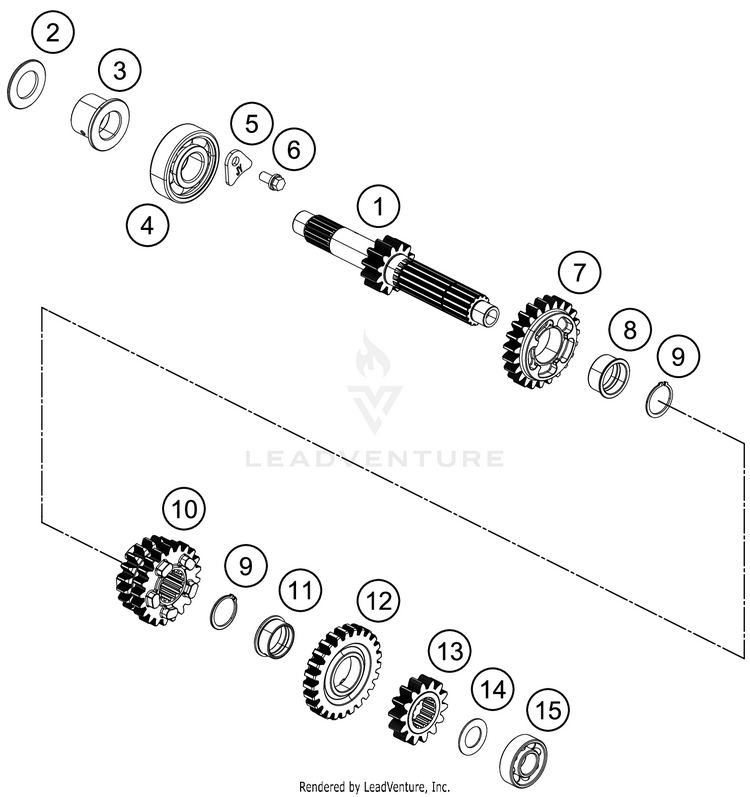

TRANSMISSION I - MAIN SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190233001000MAIN SHAFT$170.81$145.19Usually ships in 7-10 business days
290232020000WASHER$1.99$1.79Usually ships in 7-10 business days
390232016000COLLAR BUSH$10.62$9.03Usually ships in 7-10 business days
4J625063040DEEP GROOVE BALL BEARING 6304$16.74$14.23Usually ships in 7-10 business days
590230079000STOPPER BALANCER SHAFT BEARING$1.99$1.79Usually ships in 7-10 business days
690130078001FLANGED BOLT 6X12$1.99$1.79Usually ships in 7-10 business days
790233005000GEAR 5TH DRIVE$38.82$33.05Usually ships in 7-10 business days
890233005001COLLAR BUSH$6.48$5.83Usually ships in 7-10 business days
9J471020123CIRCLIP 20,5X1,2$1.99$1.79Usually ships in 7-10 business days
1090233003000GEAR 3RD/4TH DRIVE$50.92$43.28Usually ships in 7-10 business days
1190233006001COLLAR BUSH$6.15$5.54Usually ships in 7-10 business days
1290233006000GEAR 6TH DRIVE$38.60$32.87Usually ships in 7-10 business days
1390233002000GEAR 2ND DRIVE$23.44$19.96Usually ships in 7-10 business days
1490233036000WASHER TRUST 2ND DRIVE$1.99$1.79Usually ships in 7-10 business days
15J625062122BALL BEARING 15X35X11-C3-1$19.24$16.35Usually ships in 7-10 business days
