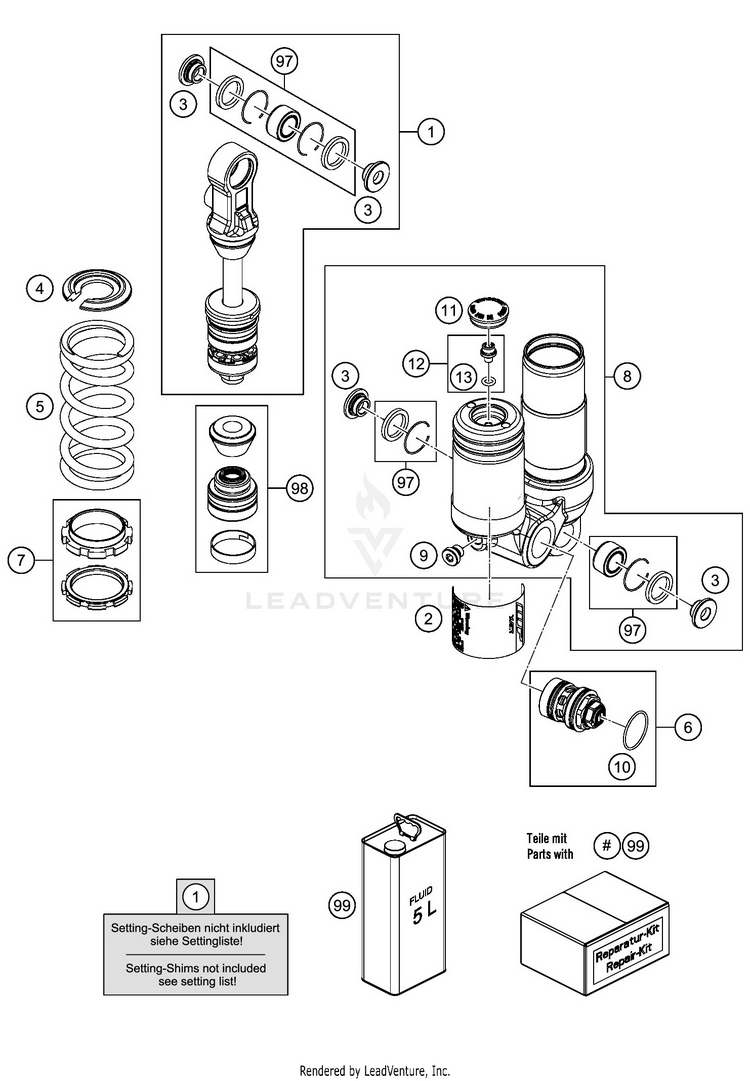

SHOCK ABSORBER DISASSEMBLED

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
136120781S17bottom part cpl. | Setting-Shims not included$409.96$348.471 In-Stock
252000263sticker XACT 90x40$31.45$26.73Usually ships in 7-10 business days
346180009Distance bush 10x15/18/24,5x9,5$7.95$6.7610+ In-Stock
436120386Spring retainer 27x57x2$31.78$27.016 In-Stock
593010218SSHOCK SPRING 30N/MM - 130MM WH | ON DEMAND$153.99$130.89Usually ships in 7-10 business days
593010217SSHOCK SPRING 35N/MM - 130MM WH$153.99$130.89Usually ships in 7-10 business days
593010219SSHOCK SPRING 40N/MM - 130MM WH | ON DEMAND$153.99$130.89Usually ships in 7-10 business days
650181101S38compression cpl.$109.55$93.12Usually ships in 7-10 business days
736120418SADJUSTING NUT CPL.$41.35$35.158 In-Stock
836120858S2Top part cmpl.$472.99$402.04Usually ships in 7-10 business days
950180095HS cylinder-head screw R1/8 l8$2.85$2.4210+ In-Stock
1050180217O-ring 27x1,5 Viton70 green ISO 3601-3S$2.41$2.0510+ In-Stock
1146811208Rubber cap do not open 22x5,5 NBR$3.62$3.0810+ In-Stock
1236120151ST

(replaces part #
36120151S)

PLUG SCREW M5X6 CPL.$4.83$4.1110+ In-Stock
13S208600003000FB

(replaces part #
46810893)

O-ring 5,28x1,78 HNBR70 red$0.76$0.6510+ In-Stock
97R12012T

(replaces part #
R12012)

Ball joint bearing kit top 12mm$42.01$35.7110+ In-Stock
98RP10003T

(replaces part #
RP10003)

REP. KIT MONOSHOCK MINI 17$97.01$82.4610+ In-Stock
9950180751S1SHOCK ABSORBER FLUID 5 LT$175.99$149.596 In-Stock
