2020 KTM SX-E 5 Swing Arm OEM Parts Diagram

Submodel SX-E 5 CHASSIS - 2020

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

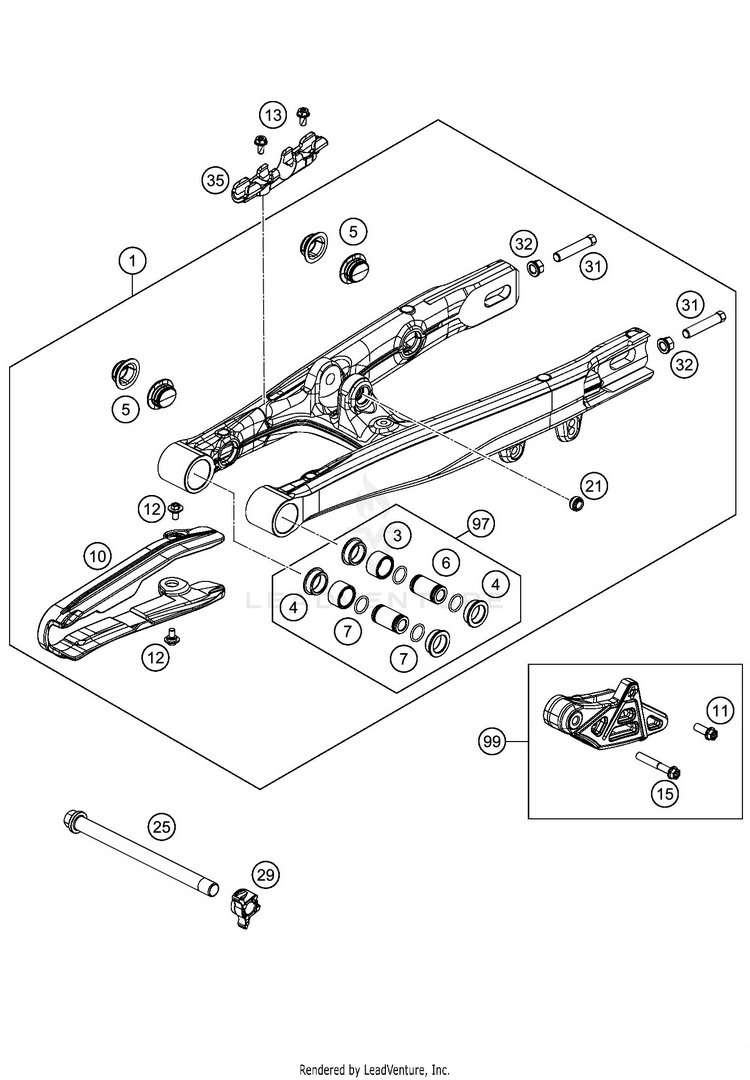

SWING ARM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
145404030044Schwing arm cpl$497.96$453.14Usually ships in 7-10 business days
354603097000NEEDLE BUSH HK 2016$17.70$15.0410+ In-Stock
446004030070SPACER BUSHING 20X26X30X9,7$3.99$3.3910+ In-Stock
545404041000Locking cap, swingarm$2.99$2.5410+ In-Stock
646004030071BUSHING BOX 12X20X36,5$21.00$17.8510+ In-Stock
70770160021O-RING 16,00X2,00 VITON$3.99$3.3910+ In-Stock
1045404066000Chain sliding protection$12.20$10.3710+ In-Stock
110025060166HH collar screw M6x16 TX30$2.99$2.5410+ In-Stock
1283008000012special screw M6x12x3$3.99$3.3910+ In-Stock
130009050106EJOT SPIRAL SCREW SF M5X10-K$2.09$2.0910+ In-Stock
150025060406HH collar screw M6x40 TX30$3.99$3.3910+ In-Stock
2169004095100

(replaces part #
69004095000)

Rivet nut M10$6.15$5.2310+ In-Stock
2545404037000Swingarm pivot$12.86$10.9310+ In-Stock
2945404038000Nut with anti-rotation lock$29.25$24.8610+ In-Stock
3150203030090HH SCREW M8X40 WS=10$4.99$4.2410+ In-Stock
3246030045000flanged nut M8 WS10$9.23$7.8510+ In-Stock
3545413047000Brake line guide$6.70$5.702 In-Stock
9745204230110

(replaces part #
45204230010)

Swing arm bearing repair kit$77.43$65.8210+ In-Stock
9946307066010CHAIN GUIDE KIT REAR 2016$45.42$38.6110+ In-Stock
